4-Port 10/100/1000Mbps IEEE 802.3af/at Industrial PoE Switch (End-Span PSE)

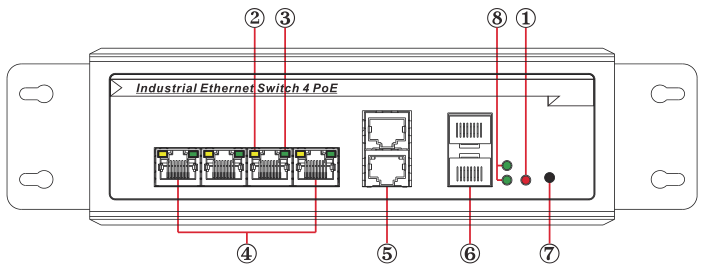

1 Power Indicator: Red Light on: with power Light off: no power
2 PoE Indicator: Yellow Light on: when device is powered Light off: when device is not detected or powered
3 Link/ Act Indicator: Green Light on: link up off: link down blinks: data transferring
4 Downlink Port: Transfer data from other IP devices to the switch
5 Uplink RJ45 Port: Transfer data from PoE ports to other devices (NVR/Switch/ADSL)
6 Uplink SFP Port: Transfer data from PoE ports to other devices (NVR/Switch/ADSL)
7 Reset Button: Press the reset button to turn on indicator and the device restarts
8 Uplink Indicator: Green LED on: link up off: link down blinks: data transferring
1 Power Input: DC 48~56V
2 Ground Connection

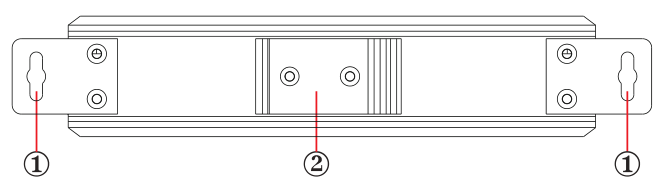

1 Rack-mounting ears: Used to wall mount installation
2 DIN-rail: Used to DIN-rail installation
A Gigabit Ethernet Combo port is an Ethernet port and a Mini-GBIC port (also called SFP’s) that share the same switch fabric and port number. A Combo port is a way to provide different types of connectivity without taking up unused switch fabric. These Combo ports can also be labeled as tied, meaning two different physical ports that can only be used one at a time. A Gigabit Ethernet Combo port consists of one 1000Base-T Gigabit over Copper port (provided), and one Mini-GBIC port (empty port that requires Mini-GBIC module).
Note:
If a Mini-GBIC port is being used, then the corresponding 1000BASE-T copper port is automatically disabled and vice versa.
1. Cat5e, Cat6, or Cat7 cable
2. RJ-45 connectors
3. Crimping tool
4. Wire stripper or Knife
1) We recommend stripping at least half an inch of the cable to expose the inner wires.
2) Separate the wires within the cable after the network cable jacket has been removed so that they can be put into the RJ-45 connector.
3) The CAT5 twisted-pair cable consists of four twisted wires, each color coded; 8 wires must be correctly lined as the standards of EIA/TIA 568A or EIA/TIA 568B.
4) Cut thread residue and leave 1.5cm wire exposed outside the insulating layer and ensure 8 wires are straighten and neat.
5) Place the cable into the RJ-45 connector and then use the crimping tool to attach the connector.
6) Repeat above steps for the other end of the cable; the wire sequence of both ends of the cable is suggested to be identical.
7) Make sure to test the cables before installing them once both ends of the cable have been completed.
Note:
1. All RJ-45 Ports of this device support Auto MDI/MDIX, so the different wire sequence of both ends of the cable is allowed.
2. Up to two units can be cascaded.
Package Contents
1) FS-S3004GP-2C: 1pc 2) 53VDC/1.25A or 2.5A Power adapter: 1pc
3) Screws: 10pcs 4) DIN rail: 1pc
5) Mounting-ears: 2pcs 6) Manual: 1pc

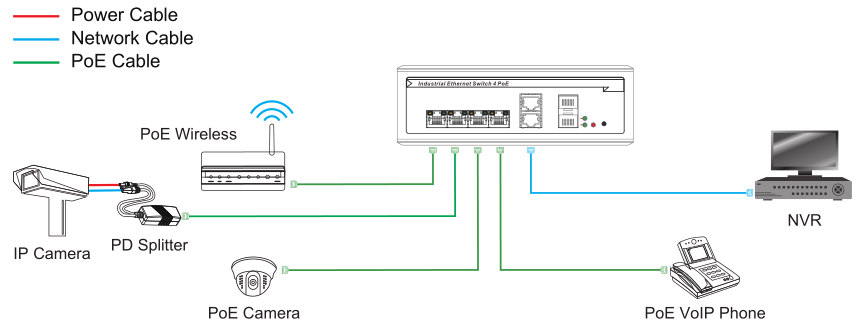

Step 1: Begin with all input/output devices turned off and power cables are removed.
Step 2: Connect RJ-45 port of PoE cameras with Downlink RJ-45 port of PoE switches over standard Cat 5e/6 cables.
Step 3: Connect Uplink port of PoE switches with RJ-45 port of NVR or computer or other devices over standard Cat 5e/6 cables.
Step 4: Connect 53VDC/1.25A or 2.5A power adaptor with PoE switches.
Step 5: Make sure above connection is properly finished, then turn on the power.
|
Model |
FS-S3004GP-2C |
|
|
Product Name |
4-Port 10/100/1000Mbps IEEE 802.3af/at Industrial PoE Switch |
|
|
Power Supply |
Power Supply Mode |
Power Adaptor |
|
Voltage Range |
DC48~56V |
|
|
Power Consumption |
The device <5W PoE power supply ≤60W or 120W |
|
|
Network Port Parameter |
Network Port |
Ethernet Downlink Port: 10/100/1000Mbps Ethernet 2 Uplink Port: 10/100/1000Mbps |
|
Transmission Distance |
Downlink port: 100m Uplink port: 100m The transmission distance of optical fiber port depends on the different SFP modules |
|
|
Transmission Medium |
Downlink port: Cat5e/6 standard cable Uplink port: Cat5e/6 standard cable or fiber |
|
|
PoE Standards |
IEEE802.3af/at |
|
|
PoE Power Supply Mode |
End-span method |
|
|
PoE Power Supply Wattage |
Each port ≤30W Whole device ≤60W or 120W |
|
|
Network Switch Specification |
Network Standards |
IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX/FX, IEEE802.3az |
|
Swap Mode |
Store-and- forward |
|
|
Data-Caching Mechanism |
1M |
|
|
MAC Address List |
4K |
|
|
Forwarding Capacity |
8.92Mpps |
|
|
Indicator/Button |
Power Indicator |
Red LED on: power on |
|
Uplink Port |
Green LED on: link up, off: link down, blinks: data transferring |
|
|
PoE Indicator |
4 PoE indicator light (Yellow) |
|
|
PoE Network Port Indicator |
1~4 port indicators blink while data transferring |
|
|
Protection Level |
Surge Protection |
6KV (common mode),10/700us IEC61000-4-5 2KV (differential mode),10/700us IEC610000-4-5 |
|
Electrostatic Protection |
Contact Discharge: ±8KV Air Discharge: ±15KV Standard: IEC61000-4-2 |
|
|
Reliability |
Stability Testing |
IEC60068-2-32 (Free fall) IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration) |
|
Regulation Compliance |
FCC Part 15 Class A, CE |
|
|
Mean time between failures (MTBF) |
＞100000h |
|
|
Mechanical |
Dimensions (L*W*H) |
184mmx140mmx56mm |
|
Housing |
Galvanized & aluminum |
|
|
Body Color |
Black |
|
|
Net Weight |
750g |
|
|
Environmental |
Operating Temperature |
-40℃~75℃ |
|
Storage Temperature |
-40℃~85℃ |
|
|
Relative Humidity |
0~95% (non-condensing) |
|
