Single Channel Active Video Transmitter & Passive Video Receiver

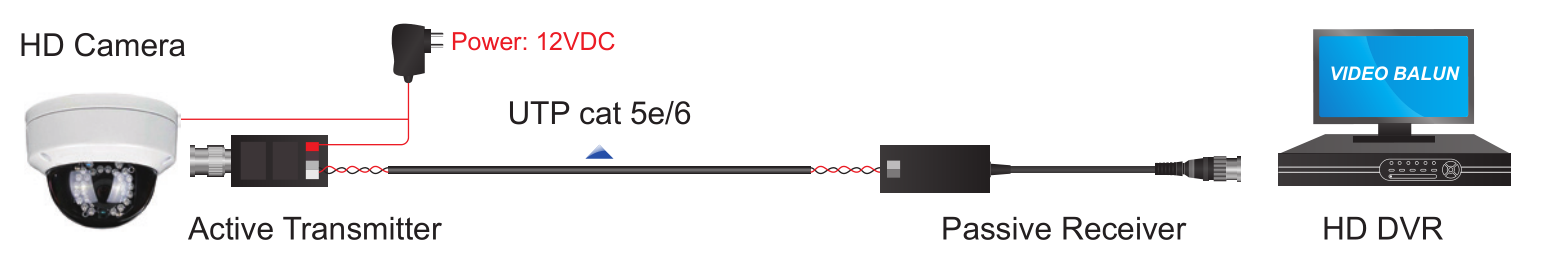

The FS-HDAP4501 video balun is an active & passive (amplified) device that allows the transmission of real-time CCTV HD video signal via cost-effective Unshielded Twisted Paired (UTP) cable. The FS-HDAP4501 is composed of one active transmitter at camera side and one passive receiver at DVR side, which is compatible with all HD-TVI, HD-CVI, AHD and CVBS analog cameras. Transmission distance within a certain range can be flexibly adjusted by the dial switch of FS-HDA4501R.
The superior interference rejection and low emissions of the FS-HDAP4501 allow video signals to coexist in the same wire bundle as telephone, datacom, or low-voltage power circuits. This allows the use of a shared or existing cable plant. The FS-HDAP4501 is built-in surge suppressor to protect video equipment against damaging voltage spikes. Its crosstalk and noise immunity ensure quality video signals.
The FS-HDAP4501 is recommended to use with Unshielded Twisted Paired (UTP) wiring from 24AWG through 22AWG. Individually shielded pairs should.
be avoided, as they reduce the operating range of the systems drastically. Multi-pair cable (25-pair or more) with an overall shield are acceptable. Video.
signals can coexist in the same wire bundle as telephone, datacom, or low-voltages power circuits. While video may be routed through telephone punch-down
block terminals, any bridge-taps, also called T-taps and any resistive, capacitive or inductive devices MUST BE removed from the pair.
For more specific information regarding wire types, gauges and proper installation techniques, please contact us for technical assistance.
|
Model |
FS-HDAP4501 |
|
|
Product Name |
Single Channel Active Video Transmitter & Passive Video Receiver |
|
|
Applied Devices |
CCTV cameras, monitors, DVR |
|
|
Video |
Video Format |
HD-TVI, CVI, AHD and CVBS |
|
Operating Frequency |
Signal bandwidth:205MHz(-3db) |
|
|
Max Distance |

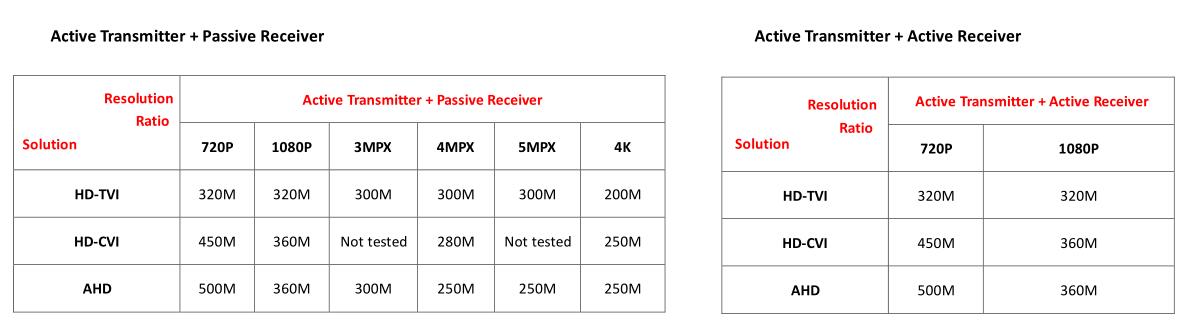

Please refer to distance chart |
|
|
Impedance |
BNC side 75Ω unbalanced, UTP side 100Ω balanced |
|
|
Wire Type |
Network Wiring |
One Unshielded Twisted Pair (for each video signal) 24-16 AWG (0.5-1.31mm) |
|
Category Type |
UTP cat 5e/6 |
|
|
Impedance |
100 ± 20 ohms |
|
|
DC Loop Resistance |
30.5 ohms per 1,000ft (10 ohms per 100m) |
|
|
Mutual capacitance
|
18 pF/ft max (59 pF/m max) |
|
|
Power |
Adaptive Voltage Arrange |
12VDC power adapter |
|
Power Consumption |
<120mW |
|
|
Connector |
Video Input |
Male BNC Connector |
|
Video Output |
Push-pin terminal connection for UTP cat 5e/6 |
|
|
Protection |
Antistatic |
YES |
|
Video Input |
1KV (differential mode),2KV (common mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999) |
|
|
Video Output |
2KV (common mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999) |
|
|
MTBF |
Mean Time Between Failure |
20000h |
|
Mechanical
|
Housing |
ABS plastic |
|
Body Color |
Black |
|
|
Dimensions (L*W*H) |
60*30*24.5mm（L*W*H (BNC connector & mounting bracket excluded) |
|
|
Net Weight |
48g |
|
|
Environmental
|
Operating Temperature |
-5º ~ 45º C |
|
Relative Humidity |
0~95% (non-condensing) |
|
|
Storage Temperature |
-45º ~ 85º C |
|
• Security Monitoring System
• Multimedia Network Teaching System
• Medical Monitoring Display System
• Industrial Automation Control System
• Banking, securities, financial information display system
• Remote Network Server Monitoring
• Department Store Security
• Casino Security
• Hospitals, Airports and banks
• School Campuses
