HD Video Ground Loop Isolator

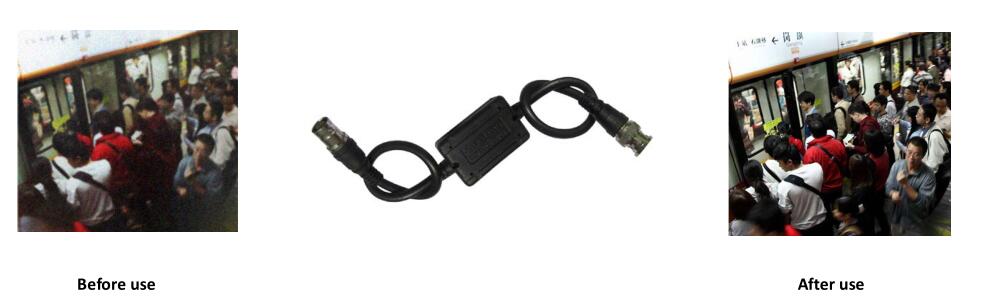

FS-HDGL001, the HD Video Ground Loop Isolator, is a passive device working without power supply. With built-in magnetic circuit, the device helps to isolate the current at front and rear end and reduce its impact on the signal, and as a result, lower the grounding interference with HD CCTV video signal. The device could be easily installed in a new system or be added to the existing system.
FS-HDGL001 works excellently in transmitting video signal between different ground potentials through electric cable as the ground potential difference is generally
caused by unbalanced cable load. It could be applied to any CCTV system with earth loop interference such as office building, residence community, school, hospital, etc.
Note:

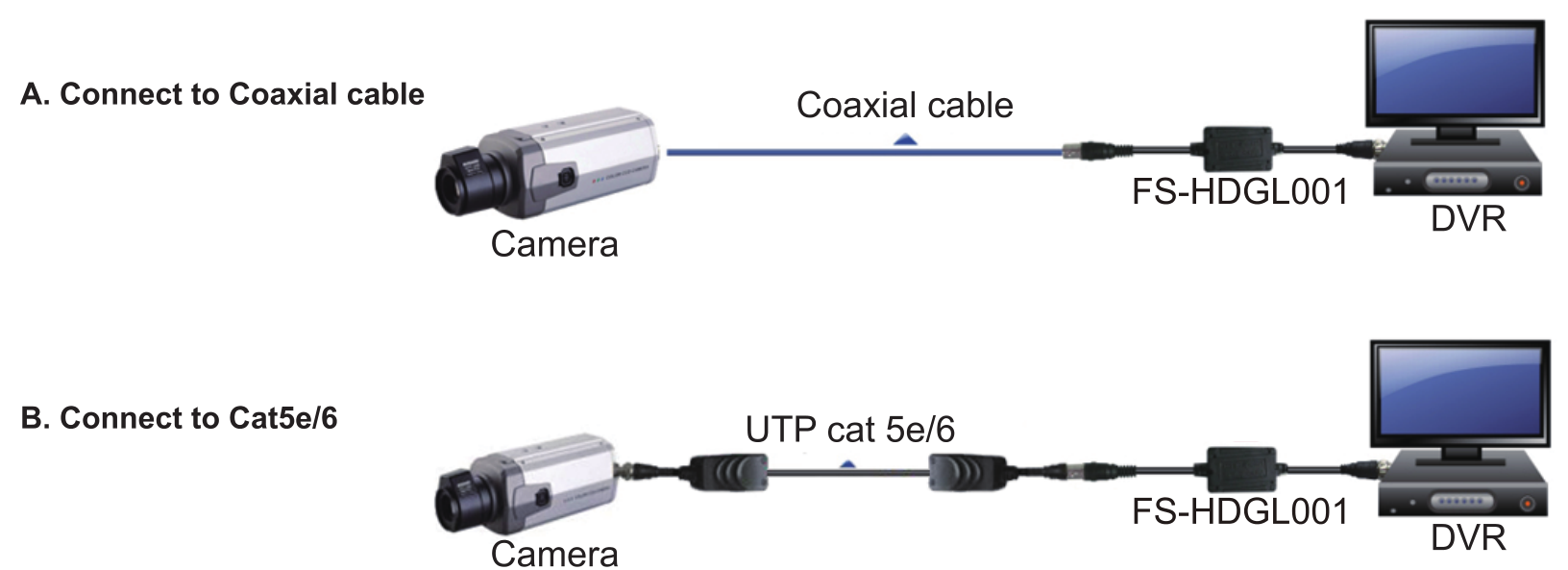

1. Please make sure to install this video ground loop isolator only at DVR end. Do not install it at camera end.
2. The HD video ground loop isolator will increase the attenuation of video signal transmission.It is recommended to be installed under 200m over coax or under 150m over UTP cat5e/6.
3. The HD video ground loop isolator is not waterproof. Please provide good waterproof protection when used outdoors.
4. The HD ground loop isolator is only suitable for video surveillance systems where the front and rear end potentials are present.
Other interference problems cannot be solved。
|
Model |
FS-HDGL001 |
|
Product description |
HD Video Ground Loop Isolator |
|
Input / Output Impedance |
75Ω |
|
Bandwidth |
25Hz~50MHz |
|
Ground Loop Isolation |
>90dB @ >50Hz |
|
Isolated Voltage |
500VAC / 600VDC |
|
Insulation Resistance |
>1M Ohm |
|
Common Mode Rejection Ratio (CMMR) |
> 60dB |
|
ESD Protection |
1a contact discharge
3 degree |
|
Surge Protection |
2KV 10/700us, IEC61000 - 4 - 5 |
|
Net Weight |
75g |
|
Dimensions (L*W*H) |
42.8*28*20mm (BNC connector included) |
|
Operating Temperature |
-20º ~ 60º C |
|
Storage Temperature |
-30º ~ 80º C |
|
Relative Humidity |
0-95% (non-condensing） |
• Security Monitoring System
• Multimedia Network Teaching System
• Medical Monitoring Display System
• Industrial Automation Control System
• Banking, securities, financial information display system
• Remote Network Server Monitoring
• Department Store Security
• Casino Security
• Hospitals, Airports and banks
• School Campuses
