Transmit or receive HDMI signal over single standard Cat5e/6
The FS-HD2100E is a HDMI extender which adopts new HDMI extending technology.The product consists of a transmitter unit and a receiver unit and should be used in pairs.
With the application of this HDMI extender, HDMI signal could be extended up to 50m over single cost-effective Cat5e/6 or above at higher standard. Transmission distance up to 50m is a perfect solution for family application as well as CCTV monitoring.
The FS-HD2100E extender is also a complete solution to solve the image mosaic, color distortion, transmission failure and other problems when long distance HDMI signal is transmitted. The product is widely applied to situations such as Home Theater, Exhibition, Multi-media classroom, etc.

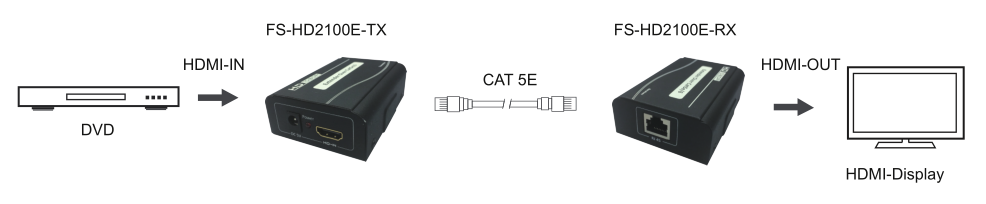

Step 1: Begin with all input/output devices turned off and power cables are removed.
Step 2: Use a HDMI cable: connect the male end to video source, the female end to “HDMI IN” of FS-HD2100E-TX.
Use a Cat5e/6 cable: connect one end to RJ 45 connector of FS-HD2100E-TX, the other end to RJ 45 connector of FS-HD2100E-RX.
Step 3: Use another HDMI cable: connect the male end to “HDMI OUT” of FS-HD2100E-RX, the other end to display device.
Step 4: Make sure the connections mentioned above are properly finished. Then connect FS-HD2100E-TX and FS-HD2100E-RX to DC+5V power supply.
When the red power LED indicator turns on and display device works with good image, then the whole connection is done successfully.
|
Product Name |
HDMI Extender |
|
Model |
FS-HD2100E |
|
Version |
HDMI1.3 HDCP1.2 |
|
Resolution |
480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@60Hz |
|
Max Transmission |
Transmission distance max up to 50m over Cat5e/6 or above |
|
Power Adapter |
DC5V/1A |
|
Power Consumption |
TX: ≤3W RX: ≤3W |
|

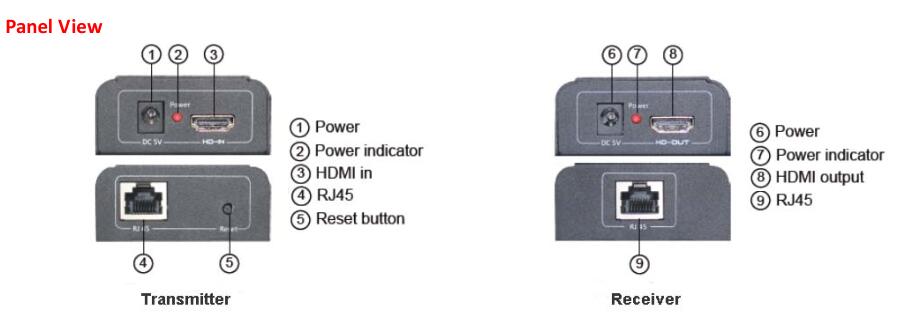

Red Indicator |
DC+5V power indicator |
|
Green Indicator |
Data signal indicator |
|
ESD Protection |
Electronics Touch Discharge: ±2KV Air Discharge: ±4KV Standard: IEC61000-4-2 |
|
Operating Temperature |
0℃ ~ 60℃ |
|
Humidity |
0 ~ 95℃ |
|
Dimension |
83X62X27mm |
• Home Theater system
• Venue display system
• Medical Monitoring Display System
• LCD and plasma flat panel multimedia advertising project
• Big screen LED curtain wall display project
• The large projection equipment display system
• The industrial automation and control system
• Audio/Video meeting system
• Security monitoring system
• Multimedia network education system
• Long-distance network server monitoring
• Central control system
• Military exercises command system
