Single Channel PoE Injector-Active

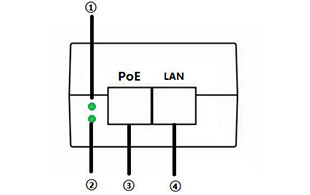

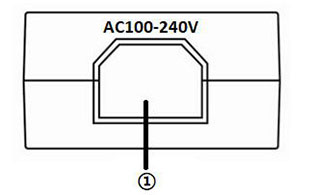

1 AC Power input interface
1 PoE Indicator: Light on when device is powered Light off when device is not powered or detected
2 Power Indicator: Green, ON: with power; OFF: no power
3 PoE Port: Supplies power and data to camera or other IP devices
4 LAN Port: Transfers data from switch port
1. Cat5, Cat5e, or Cat6 cable
2. RJ-45 connectors
3. Crimping tool
4. Wire stripper or Knife
1) We recommend stripping at least half an inch of the cable to expose the inner wires.
2) Separate the wires within the cable after the network cable jacket has been removed so that they can be put into the RJ-45 connector.
3) The CAT5 twisted-pair cable consists of four twisted wires, each color coded; 8 wires must be correctly lined as the standards of EIA/TIA 568A or EIA/TIA 568B.
4) Cut thread residue and leave 1.5cm wire exposed outside the insulating layer and ensure 8 wires are straighten and neat.
5) Place the cable into the RJ-45 connector and then use the crimping tool to attach the connector.
6) Repeat above steps for the other end of the cable; the wire sequence of both ends of the cable is suggested to be identical.
7) Make sure to test the cables before installing them once both ends of the cable have been completed.
Note:
1. All RJ-45 Ports of this device support Auto MDI/MDIX, so the different wire sequence of both ends of the cable is allowed.

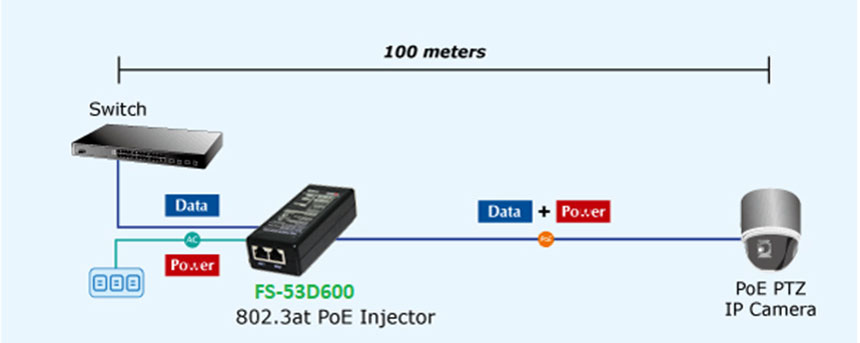

The FS-53D600 PoE injector is an active device that provides a maximum of 30-watt power and high-speed Ethernet data connection to camera, it can transmit power and data together by using one cat5e/6 UTP cable.
The FS-53D600 is a wall-mountable, single-port 802.3at PoE+ injector with internal power supply in compact housing. Carrying both Ethernet data and power simultaneously, the FS-53D600 helps users to utilize just one Ethernet cable to easily install and deploy IP camera, wireless AP or VoIP phone networking in environments where power outlet is hard to find.
It offers an affordable, safe and reliable power solution for cost-conscious business and home users deploying Power over Ethernet networks.
|
Model |
FS-53D600 |
|
|
Product Name |
Single Channel PoE injector |
|
|
Applied Devices |
PTZ camera, switchers, IP encoders, and other IP Phone |
|
|
Power supply |
Voltage Range |
100-240V AC, 50/60Hz |
|
Power Consumption |
The device≤ 30W |
|
|
Interface |
Data Input Port |
1 x RJ45 |
|
PoE (Data & Power) Output Port |
1 x RJ45 |
|
|
AC Power Input |
1 Power Socket |
|
|
Network |
Cable |
10BASE-T: 2-pair UTP Cat. 3, 4, 5, up to 100M (328ft) |
|
100BASE-TX: 2-pair UTP Cat. 3, 4, 5, up to 100M (328ft) |
||
|
EIA/TIA-568 100-ohm STP (100m) |
||
|
Rate |
10/100Mbps |
|
|
Standards Conformance |
IEEE 802.3 10BASE-T, IEEE 802.3u100BASE-TX, IEEE 802.3ab1000BASE-T |
|
|
PoE Attribution |
Power output |
DC53V |
|
PoE Standard |
IEEE 802.3af, IEEE 802.3at |
|
|
Power Supply Type |
Mid-span |
|
|
Power Pin Assignment |
4/5(+), 7/8(-) |
|
|
LED Indicator |
System |
Green, Light on: with power, Light off: no power |
|
PoE Port |
Green, Light on: when device is powered Light off: when device is not detected or powered |
|
|
Protection |
Surge Protection |
6KV (common mode), 10/700usIEC61000-4-5 2KV (differential mode), 10/700usIEC610000-4-5 |
|
Electrostatic Protection |
Contact Discharge: ±4KV Air Discharge: ±6KV Standard: IEC61000-4-2 |
|
|
Compliance |
Regulatory Compliance |
CE mark commercial, FCC Part 15 Class B, RoHS |
|
Mechanical |
Housing |
ABS engineering plastic |
|
Body Color |
Black |
|
|
Dimensions(L*W*H) |
115 x 62.5 x 31 mm |
|
|
Net Weight |
150g |
|
|
Relative Humidity |
0~95% (non-condensing) |
|
|
Working Temperature |
0º ~55º C |
|
|
Storage Temperature |
-40º ~85º C |
|
|
Reliability |
Mean time between failures (MTBF) |
>50000h |
• Security Monitoring System
• Multimedia Network Teaching System
• Medical Monitoring Display System
• Banking, securities, financial information display system
• Remote Network Server Monitoring
• Department Store Security
• Casino Security
• Hospitals, Airports and banks
• School Campuses
