Single Channel Ethernet and Power Transmitter over Cat5e/6 or above
The FS-8001T-PoE is an Ethernet and power signal transmitter over Cat5e/6 or above with max 60 watts of output. The FS-8001T-PoE is used with FS-8001R, which is an ideal solution for reconstruction of old projects without any change of existing Cat5e/6 or above. Both of Ethernet and power transmission distance max up to 600meters. The FS-8001T-PoE is able to provide power to PoE cameras over network cable.
With high speed modem technology, the physical bandwidth reaches up to 100Mbps (bidirectional). The FS-8001T-PoE has a built-in multi-stage surge and lightning protection to protect video equipment against damaging voltage spikes and provide noise immunity to ensure quality signals without disturbing "hum-bars".
The FS-8001T-PoE is widely applied to the fields such as network expanding system, network security system, network information distribution system, network upgrading & expanding system, railway and urban transportation, metallurgy and mining, field operations, etc.
Note:

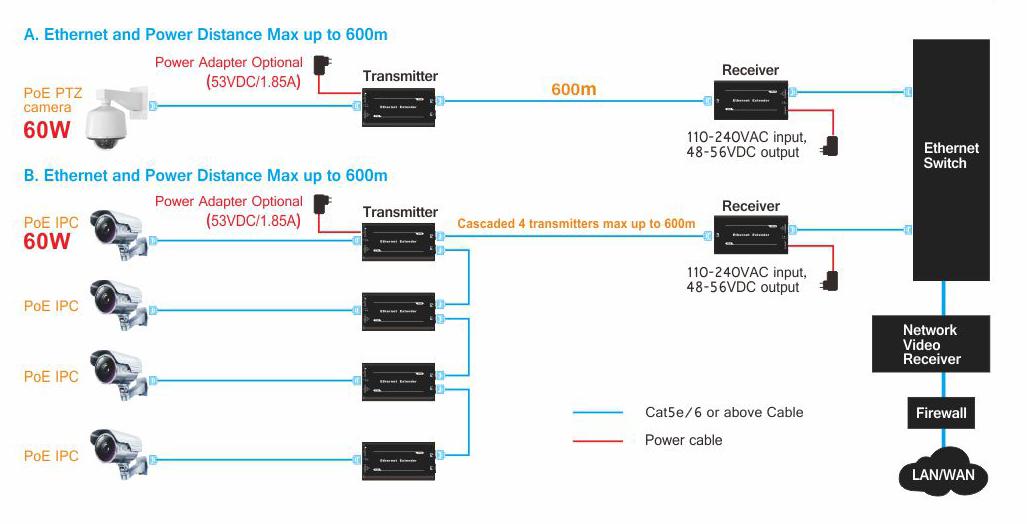

1. Max four transmitters can be cascaded.
2. Ethernet and power signals reach up to 600 meters when transmitter is used with receiver in pairs.
3.The distance between the farthest transmitter and receiver is not more than 600 meters when the transmitters are cascaded.
4. Additional power will be required if the power of PoE IP camera exceeds 12W within distance of 600 meters.
Step 1: Begin with all input/output devices turned off and power cables are removed.
Step 2: Connect
of FS-8001T-PoE with of PoE cameras over one cat 5e/6 cable.
Step 3: Connect
of FS-8001T-PoE withof FS-8001R over one Cat5e/6.
Step 4: Connect
of FS-8001R withof switch or NVR over one cat 5e/6 cable.
Step 5: Connect 53VDC/1.85A power adaptor into
of FS-8001R.
Step 6: Make sure above connection is properly finished, then turn on the power.
When Green indicator is on, which indicates Ethernet signal works.
When Red indicator is on, which indicates power works.
|
Model |
FS-8001T-PoE |
|
|
Product Name |
Single Channel Ethernet and Power Transmitter over Cat5e/6 or above |
|
|
Power Supply |
Power |
Input:53VDC/1.85A (Optional) |
|
No-Load Power |
1.5W(max) |
|
|
Ethernet Interface |
Ethernet Interface |
RJ45 Interface |
|
Transmission Distance |
100m (max) over cat5e/6 |
|
|
Standards |
IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE 802.3af/at/bt |
|
|
Physical speed |
100Mbps(bidirectional) |
|
|
P1/P2 Interface |
Impedance |
100Ω |
|
Maximum Distance |
600m(Cat5e/6 or above) |
|
|
Transmission Distance |
Distance |
Bandwidth |
|
300m |
100Mbps |
|
|
400m |
90Mbps |
|
|
500m |
80Mbps |
|
|
600m |
60Mbps |
|
|
LED Indicators |
Green Light |
Cat5e/6 or above connecting indicator |
|
Red Light |
Power indicator |
|
|
Lightning Protection Grade |
Network Port |
Differential Mode:2KV Common Mode:4KV Executive Standard: IEC61000-4-5 |
|
Device |
contact discharge: 3 grade air discharge: 3 Grade Executive Standard: IEC61000-4-5 |
|
|
Mechanical |
Dimensions(L*W*H) |
123*54*24mm |
|
Housing |
Aluminum |
|
|
Body Color |
Black |
|
|
Weight |
129g |
|
|
Environmental |
Operating Temperature |
0～55℃ |
|
Storing Temperature |
-25℃~85℃ |
|
|
Relative Humidity |
0~95% (non-condensing) |
|
