Managed Ethernet & Power Extender

Model: FS-EOC7001

1-CH IP extender over coax cable


  • Transmit Ethernet signal over coax cable
  • Transmission distance max up to 200m
  • Access Control Method and Physical Layer Specification Comply with IEEE802.3, 10BASE-T and 100BASE-T
  • Passive device, no power required
  • Real-time transmission
  • Built-in TVS for surge protection
  • Compact size, easy to install
  • ABS engineering housing
Overview

FS-EOC7001 is a kind of Ethernet signal extender over coax cable, which adopts specific technology for media conversion, complies with IEEE802.3, 10BASE-T and 100BASE-T Protocol Standards. The device can transmit Ethernet signal to 200 meters over coax cable without extra power provided. Built-in TVS for surge protection to help FS-EOC7001 protect interior equipment when encounter badly thunderstorms. As for the application area, FS-EOC7001 can be widely used for network monitoring project, upgrading from coaxial analog monitoring system to network HD monitoring system, and all the fields of transmitting Ethernet signal over coax cable.

Technical Specifications

Model

FS-EOC7001

Product Name

Single Channel IP Extender over Coax

Applied Devices

PoE Switch, Network DVR, Video Codec, other Network Equipment



Video

Ethernet Port

10/100 Mbps

Impedance

UTP: 100 Ohm    coax: 75 Ohm

Distance

Up to 200m(100Mbps)

               Power

No Extra Power Needed



Connector

Video Port

RJ45 Female

Video Port

BNC Female



Protection Level

Surge Protection Type

Renewable Solid Surge Protection

Coaxial Surge Protection

2KV (Common Mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999)

Twisted Pair Interface Surge Protection

2KV (Differential Mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999)



Operating Environment

Operating Temperature

-20-85

Storage Temperature

0~95%

Humidity

115mm*82mm*22mm



Physical Properties

DimensionLength*Width*Height

ABS Engineering Plastic

Housing

Black

Color

90g

Weight

>20000 h

 Reliability

MTBF

Mean time between failures

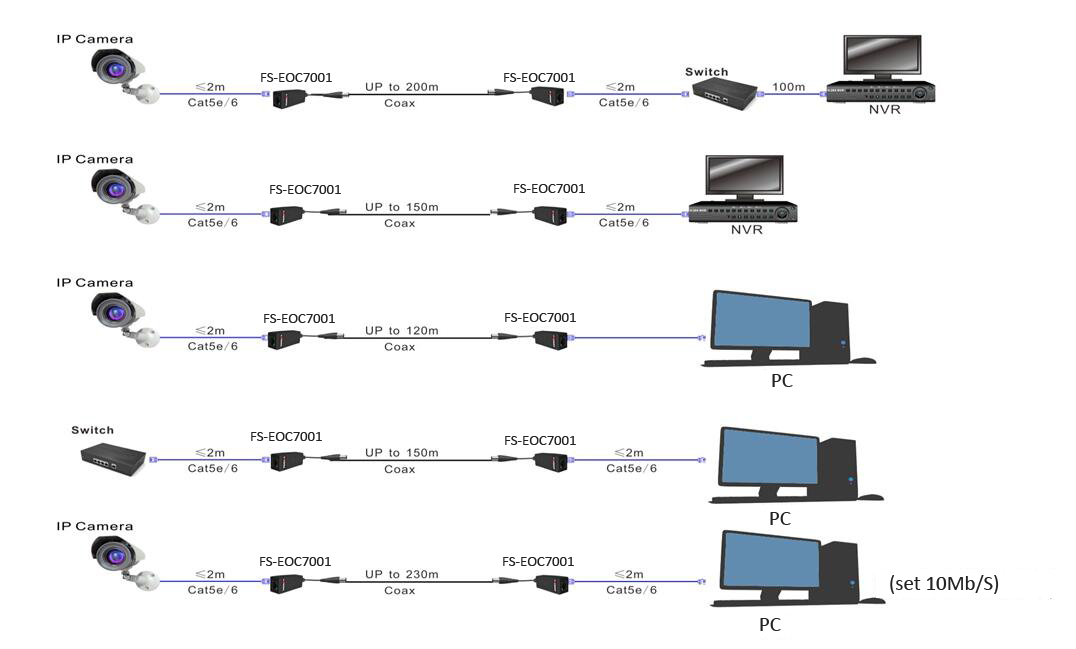

Applications

• Security Monitoring System

• Multimedia Network Teaching System

• Medical Monitoring Display System

• Industrial Automation Control System

• Banking, securities, financial information display system

• Remote Network Server Monitoring

• Department Store Security

• Casino Security

• Hospitals, Airports and banks

• School Campuses
