Managed Ethernet & Power Extender

Model: FS-EPOC7004R

4-CH Ethernet and Power Receiver over Single Coaxial Cable


  • Ethernet & power signal transmission over single coaxial cable
  • Ethernet transmission distance max up to 500m
  • Power transmission distance max up to 500m with 15W max output power
  • Meet standards such as IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3af
  •  High speed modem technology, the largest physical broadband (PHY) up to 25Mbps for each channel
  • Multi-stage strong surge and lightning protection design
  • Low power consumption, automatic error-correction coding technology adopted
  • Easy installation, plug-and-play mode, fast network connection

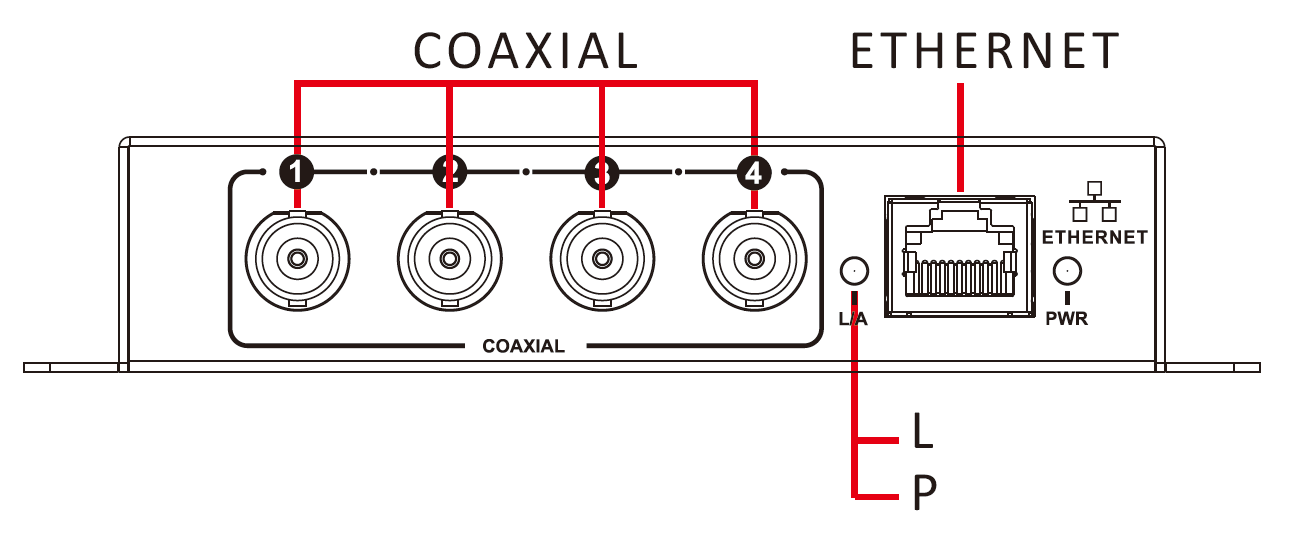

Front & Rear Panel

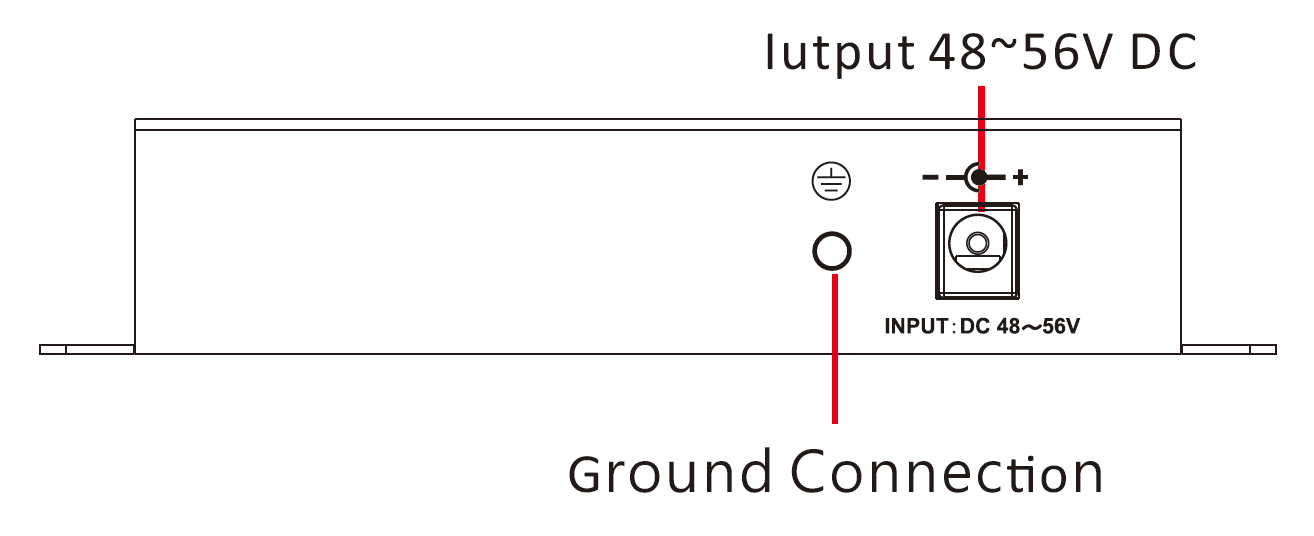

Rear Panel
Overview

The FS-EPOC7004R is an Ethernet and power signal receiver over single coaxial cable. The FS-EPOC7004R is used with FS-EPOC7001T-PoE, which is an ideal solution for reconstruction of old projects without any change of existing coaxial cable. You needn't change coax into network cable when you want to change analog cameras into IP cameras. Both of Ethernet and power transmission distance max up to 1000 meters.

With high speed modem technology, the physical bandwidth reaches up to 100Mbps (bidirectional). The FS-EPOC7004R has a built-in multi-stage surge and lightning protection to protect video equipment against damaging voltage spikes and provide noise immunity to ensure quality signals without disturbing "hum-bars". The FS-EPOC7004R is widely applied to the fields such as network expanding system, network security system, network information distribution system, network upgrading & expanding system, railway and urban transportation, metallurgy and mining, field operations, etc.


Quick Setup Guide

Package Contents

1) FS-EPOC7001T-PoE: 1pc            2) FS-EPOC7004R: 1pc

3) Power Adaptor 53V/1.25A: 1pc                4) Brackets: 2 sets

5) Power Wire: 1pc          6) Screw: 8 pcs

7)DC power cable 1pc

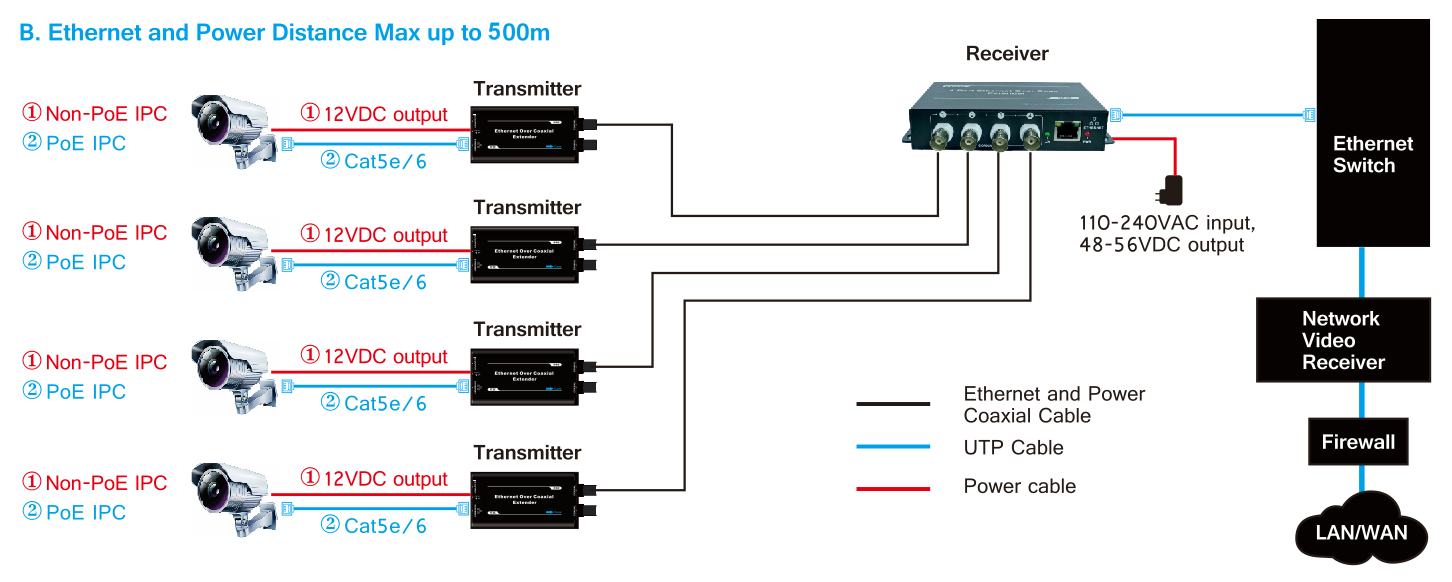

Step1: Connect Transmitter remote LAN port to RJ45 output interface of network device; connect 12VDC power output port to power interface of network device; Fix BNC connectors on both ends of coaxial cable and connect one end of this coaxial cable with Transmitter BNC interface.

Step2: Connect Receiver LAN port to RJ45 input interface of network device; connect the other end of coaxial cable to BNC interface of the Receiver; Connect 53VDC power adapter to 53V power interface of the Receiver. To Check and ensure all connections are right, then connect the power supply.

Step3: With internet connected, device will try connection automatically. Red lights turn on means power supplying well; Link indicator (Green lights) turns on means coaxial cable is well connected, quick shining means signal transmitting.

Technical Specifications

Model

FS-EPOC7004R

Product Name

Ethernet & Power Coaxial Receiver


Power Supply

Power Adaptor

Input:100 - 240VAC  Output:53VDC/1.3A

No-Load Consumption

1.5W(max)

Offer Remote Current

N/A

RJ45 Interface

Ethernet Interface

RJ45 Interface

Transmission Distance

500m (max)

Standard

IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX

Physical Speed

100Mbps (Max)

Coaxial Cable Interface

Coaxial Cable Interface

BNC connector

Coaxial Cable Impedance

75 Ohm

Maximum Distance

500m

State Indicator

Green Light

Coaxial Cable Connecting Indicator

Red Light

Power on Indicator

Green light on RJ45 jack

Network Port Indicator

Yellow light on RJ45 jack

Network Port Indicator

LED Indicators

Green Light

Coaxial cable connecting indicator

Red Light

Power indicator

Green light on RJ45 jack

Network Port Indicator

Yellow light on RJ45 jack

Network Port Indicator

Lightning Protection Grade

Transmission Port

Differential Mode:2KV    Common Mode:4KV

Executive Standard: IEC61000-4-5

Device

Contact discharge: 3 Grade   air discharge: 3 Grade

Executive Standard: IEC61000-4-2

Mechanical

Dimensions(L*W*H)

120*78*27mm

Housing

galvanized

Body Color

Black

Weight

300g

Environmental

Operating Temperature

055

Storing Temperature

-25~85

Relative Humidity

0~95% (non-condensing)


Applications

• Security Monitoring System

• Multimedia Network Teaching System

• Medical Monitoring Display System

• Industrial Automation Control System

• Banking, securities, financial information display system

• Remote Network Server Monitoring

• Department Store Security

• Casino Security

• Hospitals, Airports and banks

• School Campuses
