48V-0.5A PoE Injector
1. Cat5, Cat5e, or Cat6 cable
2. RJ-45 connectors
3. Crimping tool
4. Wire stripper or Knife
1) We recommend stripping at least half an inch of the cable to expose the inner wires.
2) Separate the wires within the cable after the network cable jacket has been removed so that they can be put into the RJ-45 connector.
3) The CAT5 twisted-pair cable consists of four twisted wires, each color coded; 8 wires must be correctly lined as the standards of EIA/TIA 568A or EIA/TIA 568B.
4) Cut thread residue and leave 1.5cm wire exposed outside the insulating layer and ensure 8 wires are straighten and neat.
5) Place the cable into the RJ-45 connector and then use the crimping tool to attach the connector.
6) Repeat above steps for the other end of the cable; the wire sequence of both ends of the cable is suggested to be identical.
7) Make sure to test the cables before installing them once both ends of the cable have been completed.
Note:
1. All RJ-45 Ports of this device support Auto MDI/MDIX, so the different wire sequence of both ends of the cable is allowed.

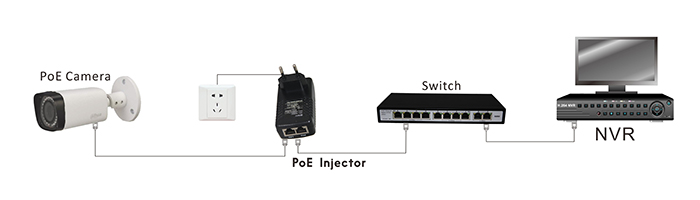

The FS-48D500 can supply power to PDs (Powered Devices) or PoE Receiver Adapters, or other equivalent products compatible with IEEE802.3af standard. It is widely applied for AP, IP Camera or VoIP, etc.
|
Model |
FS-48D500 |
|
Interface |
1x10/100Mbps RJ45 Port 48VDC POWER&DATA Output RJ45 Port |
|
Network Media |
10BASE-T: UTP category 3, 4, 5 cable (Max 100m) |
|
AC Power Input Range |
AC 100～240V 50-60Hz |
|
Power Supply |
48V/0.5A Max |
|
Power Pair |
4/5(+)、7/8(-) |
|
Dimensions(L*W*H) |
83x47x31mm |
|
Operating Temp. & Hum. |
-10℃~45℃ 20%~90%RH non-condensing |
|
Storage Temp. & Hum. |
-40℃~85℃ 20%~90%RH non-condensing |
|
MTBF (MIL-HDBK-217F) |
More than 20,000Hrs (25℃, full load) |
|
Safety Standard |
GB4943, IEC/EN/UL/CSA60950 |
|
Electromagnetic Interface |
Compliance to EN61000-4, ENV50204, Grade A light industry standard |
• Security Monitoring System
• Multimedia Network Teaching System
• Medical Monitoring Display System
• Banking, securities, financial information display system
• Remote Network Server Monitoring
• Department Store Security
• Casino Security
• Hospitals, Airports and banks
• School Campuses
