Analog Stereo Audio Extender
Stereo RCA to Stereo RCA Audio Signal Extender
• Real-time transmission over UTP cat5e/6
• Used in pairs, no distinction between transmitter and receiver
• Audio Connectors: 2x RCA
•RJ45 Connectors: 1x RJ45 ( 1/2 for R and 3/6 for L)

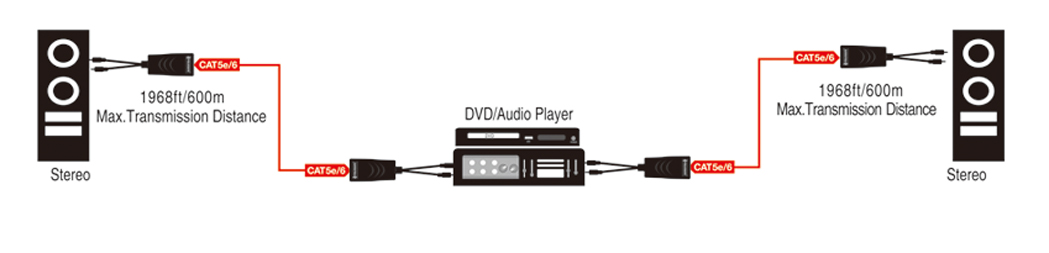

• Audio distance is up to 1968ft(600m) via cat 5e/6 or above cable
• -3dB Bandwidth: 10 Hz to 50 kHz
• Easy Installation - Plug and play;
• Operating Temperature: -10℃ ~ +50℃
• ABS engineering plastic housing
DownloadThe FS-2001AA is recommended to use with Twisted Paired wiring from 24AWG through 22AWG.
Individually shielded pairs should be avoided, as they reduced the operating range of the systems drastically.
Multi-pair cable (25-pair or more) with an overall shield is acceptable.
For more specific information regarding wire types, gauges and proper installation techniques, please contact us for technical assistance.
|
Model |
FS-2001AA |
|
|
Product Name |
Stereo RCA to Stereo RCA Audio Extender |
|
|
Applied Devices |
DVD/VCD, Audio amplifier |
|
|
Wire Type |
Network Wiring |
One Unshielded Twisted Pair (for each audio R/L signal) 24-16 AWG (0.5-1.31mm) |
|
Category Type |
UTP cat 5/5e/6 |
|
|
Impedance |
100 ± 20 ohms |
|
|
DC Loop Resistance |
52 ohms per 1,000ft (18 ohms per 100m) |
|
|
Differential Capacitance |
19 pF/ft max (62 pF/m max) |
|
|
Audio Signal |
Transmission distance |
Up to 1968ft(600m) via UTP cat5e/6 |
|
-3dB Bandwidth |
10 Hz to 50 kHz |
|
|
Signal definition |
R channel twist pair 1/2, L channel twist pair 3/6 |
|
|
Connector |
Audio input/output |
RCA connector |
|
Audio input/output |
RJ-45 Jack |
|
|
Protection |
Surge protection |
2KV (common mode), 10/700us IEC6100-4-5 |
|
Mechanical |
Housing |
ABS engineering plastic |
|
Body Color |
Black |
|
|
Dimensions(L*W*H) |
65*29*20.4mm (RCA connector & cable excluded) |
|
|
Net Weight |
55g |
|
|
Environmental |
Operating Temperature |
-10℃ ~ 50℃ |
|
Relative Humidity |
0~95% (non-condensing) |
|
|
Storage Temperature |
-40℃ ~ 85℃ |
|
