Managed Economical PoE Switch

Model: FS-S0008EP-G-SG

8-Port 10/100Mbps IEEE 802.3af/at PoE Switch (End-Span PSE)


•Comply with IEEE802.3, IEEE802.3u, IEEE802.3af/at standards

•Support IEEE802.3x full-duplex flow control; support Auto MDI/MDIX

•8-Port support 48V-56VDC power to PoE powered devices

•Provide 15.4W or 30W power to powered devices

•110-watts PoE budget

•Built-in 53VDC/1.85A switching power supply

•Extra 1-Port 10/100/1000Mbps UPLINK RJ-45 port and 1x 1000Mbps

 fiber SFP Uplink port

•PoE data & power transmission distance up to 100 meters

•Port based VLAN for Enhancing Security

•Backplane Bandwidth: 5.6Gbps

•Excellent anti-thunder, anti-static and anti-interference ability

•Surge Protection: 4KV

•Easy and convenient to use, plug & play, no need to configure

•Galvanized housing for stable and durable working life

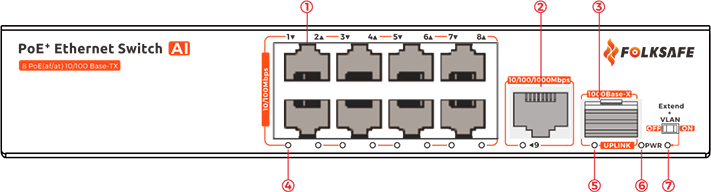

Front & Rear Panel

1 Downlink Port: Transfer data from other lP devices to the switch

2 Power Indicator: Red Light on: with power Light off: no powerUplink Port: Transfer data from PoE ports to other devices (NVR/Switch/ADSL)

3 Uplink SFP Port: Transfer data from PoE ports to other remote devices (Switch)

4  Link/ Act Indicator:   Green   Light on: Indicates that this port is connected  Blinks: Indicates that this port is sending/receiving Ethernet frames

  Light off: Indicates that this port is sending/receiving Ethernet frames

SFP port indicator:  Green   Light on: Indicates that this port is connected         Light off: Indicates that this port is disconnected

6 Power Indicator: Green       Light on: Power on     Light off: Power off

7  VLAN Indicator: Green       Light on: VLAN and extension mode starts     Light off: VLAN and extension function stops

Rear Panel

1 Ground Connection

2 Input: AC 100~240V

AI Watchdog Function Introduction

At present, applications of Ethernet switch are very wide. To satisfy the needs of various customers, it is urgent for network services to solve the problems of broadcast domains, bandwidth and security, so a new kind of technology of VLAN emerged.

VLAN Introduction

At present, applications of Ethernet switch are very wide. To satisfy the needs of various customers, it is urgent for network services to solve the problems of broadcast domains, bandwidth and security, so a new kind of technology of VLAN emerged.

Each Downlink RJ-45 port and Uplink RJ-45 port form a separate workstation respectively. In the same VLAN workstation, regardless of which switch they are actually connected to, the communication between them is as if they were on a separate switch. Broadcasts in the same VLAN can only be heard by members of the VLAN, preventing unwanted broadcast. At the same time, if there is no routing, different VLANs cannot communicate with each other, enhancing the security of different departments in the enterprise network.

When the VLAN mode is enabled, the data cannot be forwarded among DOWNLINK RJ-45 ports, but DOWNLINK ports and UPLINK RJ-45 port can communicate with each other. The bandwidth of DOWNLINK RJ-45 port is forced to 10Mbps mode to adapt to long distance transmission of max 250 meters. The bandwidth of UPLINK RJ-45 port is 1000Mbps, which keeps a cascade connection with another switch or NVR.



     Note:

1. After you turned on VLAN button, please press reset button or reboot the device, then VLAN mode is enabled.

2. The maximum extended distance up to 250 meters.The actual extended distance will vary according to the quality of the cable, specific camera and on-site environment.


RJ 45 Define
How to make a network cable
To create a network cable, you will first need the equipment listed below.

1. Cat5e, Cat6, or Cat7 cable

2. RJ-45 connectors

3. Crimping tool

4. Wire stripper or Knife

The wire sequence of RJ45 connector must comply with international standard of EIA/TIA 568A or EIA/TIA 568B.

1) We recommend stripping at least half an inch of the cable to expose the inner wires.

2) Separate the wires within the cable after the network cable jacket has been removed so that they can be put into the RJ-45 connector.

3) The CAT5 twisted-pair cable consists of four twisted wires, each color coded; 8 wires must be correctly lined as the standards of EIA/TIA 568A or EIA/TIA 568B.

4) Cut thread residue and leave 1.5cm wire exposed outside the insulating layer and ensure 8 wires are straighten and neat.

5) Place the cable into the RJ-45 connector and then use the crimping tool to attach the connector.

6) Repeat above steps for the other end of the cable; the wire sequence of both ends of the cable is suggested to be identical.

7) Make sure to test the cables before installing them once both ends of the cable have been completed.

Note:

1. All RJ-45 Ports of this device support Auto MDI/MDIX, so the different wire sequence of both ends of the cable is allowed.

2. Up to two units can be cascaded.

Quick Setup Guide

Package Contents

1) FS-S0008EP-G-SG: 1pc           2) AC cable: 1pc

3) Manual: 1pc


Step 1: Begin with all input/output devices turned off and power cables are removed.

Step 2: Connect RJ-45 port of PoE cameras with Downlink RJ-45 port of PoE switches over standard Cat 5e/6 cables.

Step 3: Connect Uplink port of PoE switches with RJ-45 port of NVR or computer or other devices over standard Cat 5e/6 cables.

Step 4: Connect AC power cable with PoE switches.

Step 5: Make sure above connection is properly finished, then turn on the power.

Technical Specifications

Model

FS-S0008EP-G-SG

Product Name

8-Port 10/100Mbps IEEE 802.3af/at PoE Switch (End-Span PSE)

Power Supply

Power Supply Mode

AC Power Supply

Voltage Range

AC100~240V

Power Consumption

The device <5W     PoE power supply 110W

Network Port Parameter

Network Port

Ethernet Downlink RJ-45 Port: 8*10/100Mbps        Uplink RJ-45 Port: 1*10/1000Mbps  Uplink SFP port 1*1000Base-X SFP

Transmission Distance

1~8 Ethernet Downlink RJ-45 Port: 100m  Mandatory 10 Mbps reach up to 250m     Uplink RJ-45 Port: 100m

Transmission Medium

1~8 Ethernet Downlink RJ-45 Port: Cat5e/6 standard cable       Uplink RJ-45 Port: Cat5e/6 standard cable

PoE Standards

IEEE802.3af/at

PoE Power Supply Mode

End-span method

PoE Power Supply Wattage

Each port ≤30W   Whole device≤110W

Network Switch Specification

Network Standards

IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX/FX, IEEE802.3az

Swap Mode

Store-and-forward

Data-Caching Mechanism

1.8M

MAC Address List

4K

Backplane Bandwidth

5.6Gbps

Forwarding Capacity

4.16Mpps

Indicator/Button

Power Indicator

Green LED on: power on

 Uplink Port

RJ45 port: Green LED on: link up, off: link down, blinks: data transferring

SFP port: Green LED on: link up and data transferring,  off: link off

PoE Network Port Indicator

1~8 port indicators blink while data transferring

VLAN Button

Turn on VLAN button:  VLAN and extension function starts   Turn off VLAN button:  VLAN and extension function stops

Protection Level

Surge Protection

4KV (common mode),10/700us IEC61000-4-5   500V (differential mode),10/700us IEC610000-4-5

Electrostatic Protection

Contact Discharge: ±2KV   Air Discharge: ±2KV   Standard: IEC61000-4-2

Reliability

Mean time between failures (MTBF)

50000h

Mechanical

Dimensions (L*W*H)

200mmx118mmx45mm

Housing

Galvanized

Body Color

Black

Net Weight

790g

Environmental



Operating Temperature

0~55

Storage Temperature

-40~85

Relative Humidity

0~95% (non-condensing)
