Note:
1. The Cables Used for Testing
2. Coax Cables：SYV-75-5（5C-2V）75ohm coaxial cable
3. UTP Cables：cat5e CABLE GB/T18015 1-7-1999 24AWG VERIFIEO to CATEGORY 5e
|
Model |
FS-EOC7001 |
|
|
Product Name |
Single Channel IP Extender over Coax |
|
|
Applied Devices |

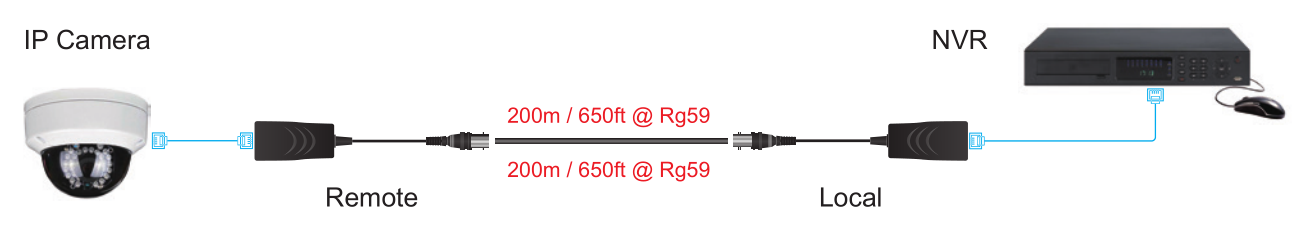

PoE Switch, Network DVR, Video Codec, other Network Equipment |
|
|
Video |
Ethernet Port |
10/100 Mbps |
|
Impedance |
UTP: 100 Ohm coax: 75 Ohm |
|
|
Distance |
Up to 200m(100Mbps) |
|
|
Power |
No Extra Power Needed |
|
|
Connector |
Video Port |
RJ45 （Female） |
|
Video Port |
BNC （Female） |
|
|
Protection Level |
Surge Protection Type |
Renewable Solid Surge Protection |
|
Coaxial Surge Protection |
2KV (Common Mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999) |
|
|
Twisted Pair Interface Surge Protection |
2KV (Differential Mode), 10/700us IEC6100-4-5/1955(GB/T 1726, 5-1999) |
|
|
Operating Environment |
Operating Temperature |
-20-85 ℃ |
|
Storage Temperature |
0~95% |
|
|
Humidity |
115mm*82mm*22mm |
|
|
Physical Properties |
Dimension（Length*Width*Height） |
ABS Engineering Plastic |
|
Housing |
Black |
|
|
Color |
90g |
|
|
Weight |
>20000 h |
|
|
Reliability |
MTBF |
Mean time between failures |
