Managed Unmanaged PoE switch

Model: FS-S1016EP-2G

16-Port 10/100Mbps IEEE 802.3af/at PoE Switch (End-Span PSE)


  • Comply with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3az, IEEE802.3af/at standards
  • Support IEEE802.3x full-duplex flow control; support Auto MDI/MDIX
  • Provide 15.4W or 30W power to powered devices
  • 200-watts PoE budget
  • Built-in 200W power supply
  • Gigabit uplink port: 2 *10/100/1000Mbps RJ-45
  • PoE data & power transmission distance up to 100meters
  • Port based VLAN for Enhancing Security
  • Transmission distance max up to 250 meters when VLAN is enabled
  • Backplane Bandwidth: 7.2Gbps
  • Restart function helps master IC reset wholly
  • Excellent anti-thunder, anti-static and anti-interference ability
  • Surge Protection: 2KV
  • Easy and convenient to use, plug & play, no need to configure
  • Galvanized housing for stable and durable working life

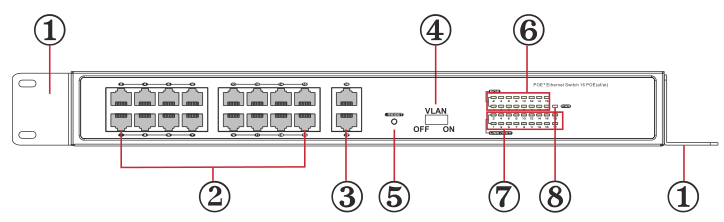

Front & Rear Panel

1 Rack-mounting ears: Cabinets for product installation or Wall installation

2 Downlink Port: Transfer data from other IP devices to the switch

3 Uplink Gigabit RJ-45 port: Transfer data from PoE ports to other devices (NVR/Switch/ADSL)

4 VLAN Button: Turn on VLAN button: indicator on and VLAN function starts         Turn off VLAN button: indicator off and VLAN function stops

5 Reset Button: Whole machine will restart while press the button

6 PoE Indicator: Yellow        Light on: when device is powered;      Light off: when device is not detected or powered

7 Link/ Act Indicator: Green      LED on: link up        off: link down        blinks: data transferring

8 Power Indicator: Red Light on: with power Light off: no power

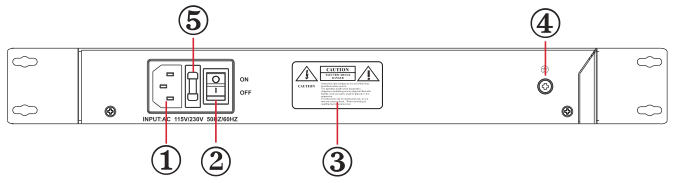

Rear Panel

1 Input AC 100~240V

2 Power Switch: Turn on with power, Turn off no power

3 Warning contents

4 Ground Connection

5 Fuse: Max 10A

VLAN Introduction

At present, applications of Ethernet switch are very wide. To satisfy the needs of various customers, it is urgent for network services to solve the problems of broadcast domains, bandwidth and security, so a new kind of technology of VLAN emerged.

Each DOWNLINK RJ-45 port and UPLINK RJ-45 port form a separate workstation respectively. In the same VLAN workstation, regardless of which switch they are actually connected to, the communication between them is as if they were on a separate switch. Broadcasts in the same VLAN can only be heard by members of the VLAN, but not in other VLANs, which can control the generation of unwanted broadcast storms. At the same time, if there is no routing, different VLANs cannot communicate with each other, which increases the security of different departments in the enterprise network.

When the VLAN mode is enabled, the data cannot be forwarded among DOWNLINK RJ-45 ports, but DOWNLINK ports and UPLINK RJ-45 port can communicate with each other. The bandwidth of DOWNLINK RJ-45 port is forced to 10Mbps mode to adapt to long distance transmission of max 250 meters. The bandwidth of UPLINK RJ-45 port is 1000Mbps, which keeps a cascade connection with another switch or NVR.


Note:

1. When you turned on VLAN button, please press reset button or reboot the device, then VLAN mode is enabled.

2. The maximum extended distance up to 250 meters. The actual extended distance will vary according to the quality of the cable, specific camera and on-site environment.


RJ 45 Define
How to make a network cable
To create a network cable, you will first need the equipment listed below.

1. Cat5e, Cat6, or Cat7 cable

2. RJ-45 connectors

3. Crimping tool

4. Wire stripper or Knife

The wire sequence of RJ45 connector must comply with international standard of EIA/TIA 568A or EIA/TIA 568B.

1) We recommend stripping at least half an inch of the cable to expose the inner wires.

2) Separate the wires within the cable after the network cable jacket has been removed so that they can be put into the RJ-45 connector.

3) The CAT5 twisted-pair cable consists of four twisted wires, each color coded; 8 wires must be correctly lined as the standards of EIA/TIA 568A or EIA/TIA 568B.

4) Cut thread residue and leave 1.5cm wire exposed outside the insulating layer and ensure 8 wires are straighten and neat.

5) Place the cable into the RJ-45 connector and then use the crimping tool to attach the connector.

6) Repeat above steps for the other end of the cable; the wire sequence of both ends of the cable is suggested to be identical.

7) Make sure to test the cables before installing them once both ends of the cable have been completed.

Note:

1. All RJ-45 Ports of this device support Auto MDI/MDIX, so the different wire sequence of both ends of the cable is allowed.

2. Up to three units can be cascaded.

Quick Setup Guide

Package Contents

1) FS-S1016EP-2G: 1pc            2) AC power cord: 1pc

3) Screw: 10pcs                      4) Manual: 1pc

5) Mounting-ears: 2pcs            6) Rubber feet: 4pcs


Step 1: Begin with all input/output devices turned off and power cables are removed.

Step 2: Connect RJ-45 port of PoE cameras with Downlink RJ-45 port of PoE switches over standard Cat 5e/6 cables.

Step 3: Connect Uplink port of PoE switches with RJ-45 port of NVR or computer or other devices over standard Cat 5e/6 cables.

Step 4: Input AC power cord into power socket of PoE switches.

Step 5: Make sure above connection is properly finished, then turn on the power.

Technical Specifications

Model

FS-S1016EP-2G(200W)

Product Name

16-Port 10/100Mbps IEEE 802.3af/at PoE Switch (End-Span PSE)

Power Supply

Power Supply Mode

Built-in Power Supply

Voltage Range

AC100~240V

Power Consumption

The device <10W     PoE power supply 200W

Network Port Parameter

Network Port

Ethernet Downlink RJ-45 Port: 16*10/100Mbps   Gigabit Uplink RJ-45 Port: 2*10/100/1000Mbps

Transmission Distance

1~16 Ethernet Downlink RJ-45 Port: 100m   Mandatory 10 Mbps reach up to 250m   Gigabit Uplink RJ-45 Port: 100m

Transmission Medium

1~16 Ethernet Downlink RJ-45 Port: Cat5e/6 standard cable   Gigabit Uplink RJ-45 Port: Cat5e/6 standard cable

PoE Standards

IEEE802.3af/at

PoE Power Supply Mode

End-span method

PoE Power Supply Wattage

Each port 30W   Whole device200W

Network Switch Specification

Network Standards

IEEE802.3, IEEE802.3ab, IEEE802.3ad, IEEE802.3u, IEEE802.3az, IEEE802.3z

Swap Mode

Store-and- forward

Data-Caching Mechanism

4M

MAC Address List

16K

Backplane Bandwidth

7.2Gbps

Forwarding Capacity

5.3568Mpps

Indicator/Button

Power Indicator

Red LED on: power on

 Uplink Gigabit Port

Green LED on: link up, off: link down, blinks: data transferring

PoE Indicator

16 PoE indicators (Yellow)

PoE Network Port Indicator

1~16 port indicators blink while data transferring

Reset Button

Press the reset button to turn on indicator (green) and the device restarts

VLAN Button

Turn on VLAN button: indicator on and VLAN function restarts   Turn off VLAN button: indicator off and VLAN function stops

Protection Level

Surge Protection

2KV (common mode),10/700us IEC61000-4-5   500V (differential mode),10/700us IEC610000-4-5

Electrostatic Protection

Contact Discharge: ±2KV   Air Discharge: ±2KV   Standard: IEC61000-4-2

Reliability

Mean time between failures (MTBF)

50000h

Mechanical

Dimensions (L*W*H)

303mmx221.5mmx44.5mm

Housing

Galvanized

Body Color

Black

Net Weight

2.5kg

Environmental



Operating Temperature

0~55

Storage Temperature

-40~70

Relative Humidity

0~95% (non-condensing)

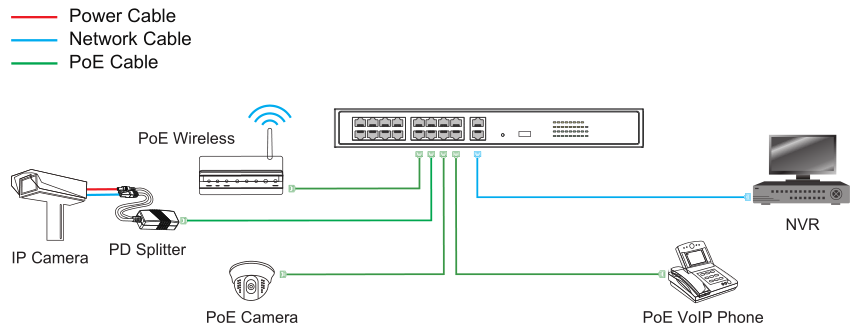

Applications

• Security Monitoring System

• Multimedia Network Teaching System

• Medical Monitoring Display System

• Industrial Automation Control System

• Banking, securities, financial information display system

• Remote Network Server Monitoring

• Department Store Security

• Casino Security

• Hospitals, Airports and banks

• School Campuses
