FS-S2016EP-2G-2SG

Managed PoE switch

Overview | Parameters | Technical Specifications | Applications

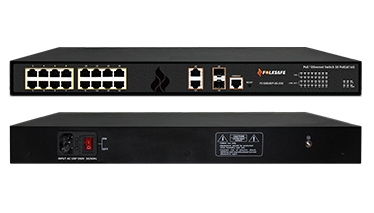

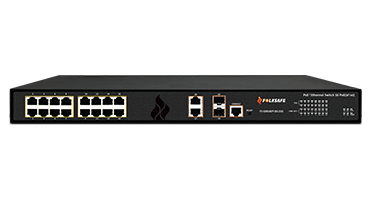

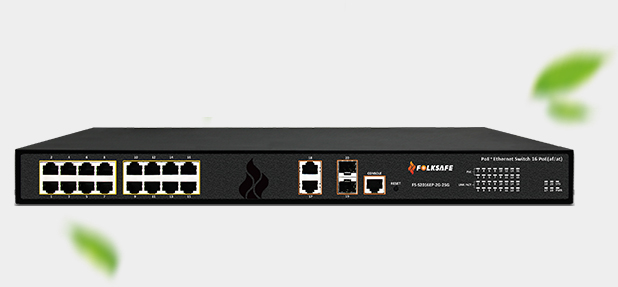

Model: FS-S2016EP-2G-2SG

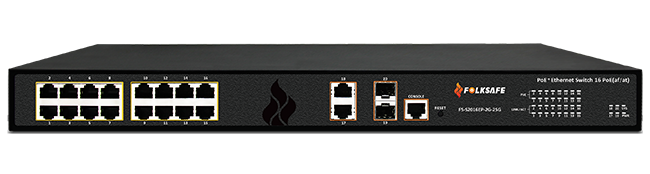

16-Port 10/100Mbps IEEE 802.3af/at Managed PoE Switch (End-Span PSE)

Comply with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3az, IEEE802.3af/at standards
Support IEEE802.3x full-duplex flow control; support Auto MDI/MDIX
Support L2 switching function, including 802.1QVLAN, port mirroring, port isolation, IGMP Snooping function, LLDP, PoE+ management and ARP detection
Support WEB, TELNET & SNMP management
Support 10K Jumbo Frames
Support STP (802.1D) and RSTP (802.1w)
16-Port support 48V-56VDC power to PoE powered devices
Provide 15.4W or 30W power to powered devices

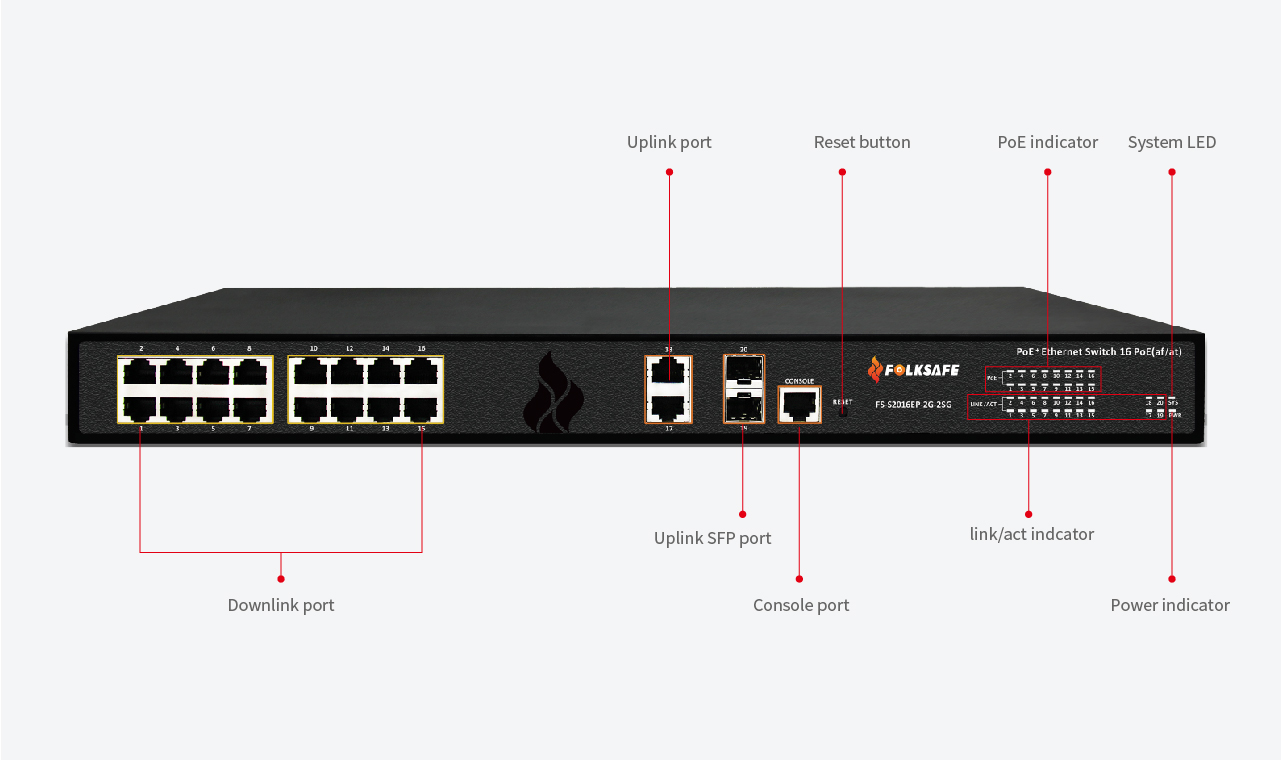

Extra 2-Port 10/100/1000Mbps UPLINK RJ-45
Extra 2-Port 1000Base-X UPLINK SFP port
300-watts or 420-watts PoE budget
PoE data & power transmission distance up to 100 meters
Excellent anti-thunder, anti-static and anti-interference ability
Surge Protection: 6KV
Restart function helps master IC reset wholly
Easy and convenient to use, plug & play, no need to conﬁgure
Galvanized housing for stable and durable working life

RTM function make the camera work smoothly

Real Time Monitoring(RTM) function, detect and reboot the device when the camera frozen.

Multiple functions to better set the switch

Support L2 switching function, including 802.1QVLAN, port mirroring, port isolation, IGMP Snooping function, LLDP, PoE+ management and ARP detection. Login to the web interface, you can set VLAN and extend function by yourself.

Save your cost and time

With data and power over Ethernet formed one unit, the FS-S2016EP-2G-2SG reduces cabling requirements and eliminates the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. A wire that carries both data and power can lower the installation costs, simplify the installation effort and eliminate the need for electricians or extension cords.

Office Network

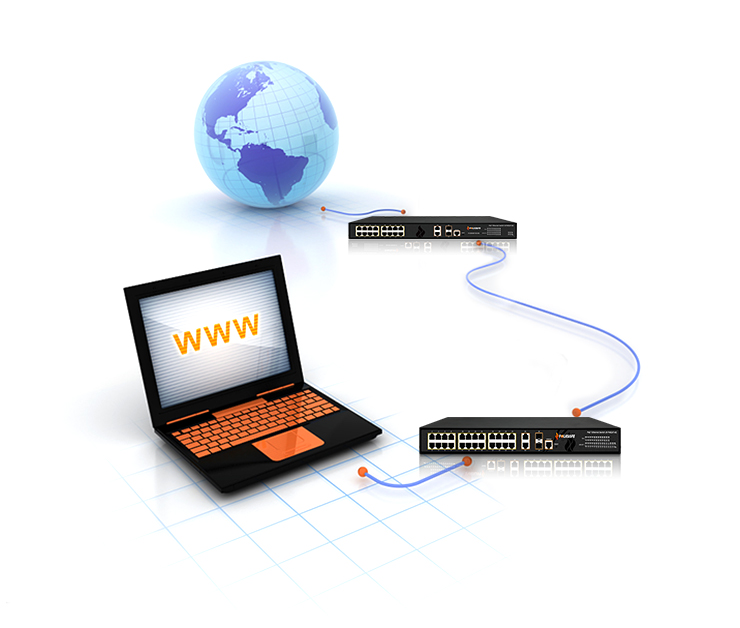

Cascade connection to better control

your surveillance system

It provides both 802.3af/at PoE functions along with 16 x 10/100Base-TX ports featuring 15.4-watts 802.3af/30-watts 802.3at PoE in RJ-45 interfaces and extra 2 x 10 /100/1000Mbps RJ45 plus 2 x 1000Base-X SFP ports to keep a cascade connection with another switch or NVR as a kit for the administrators to centrally and efficiently manage the surveillance system in the local LAN and the remote site via Internet.

More features, more choices

Easy and convenient to use, plug & play, no need to configure.
