Industrial PoE switch
Overview | Parameters | Technical Specifications | Applications

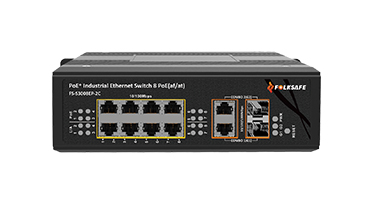

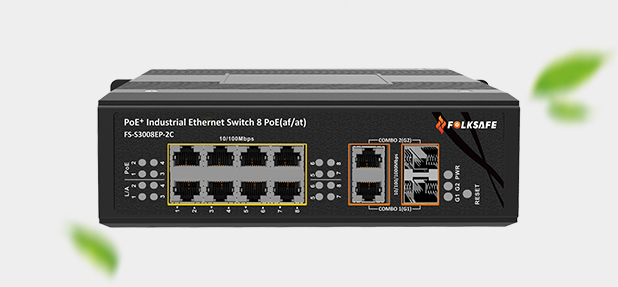

Model: FS-S3008EP-2C

8-Port 10/100Mbps IEEE 802.3af/at Industrial PoE Switch (End-Span PSE)

  • Comply with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3az, IEEE802.3af/at standards
  • Support IEEE802.3x full-duplex flow control; support Auto MDI/MDIX
  • 4-Port support 48V-56VDC power to PoE powered devices
  • Provide 15.4W or 30W power to powered devices

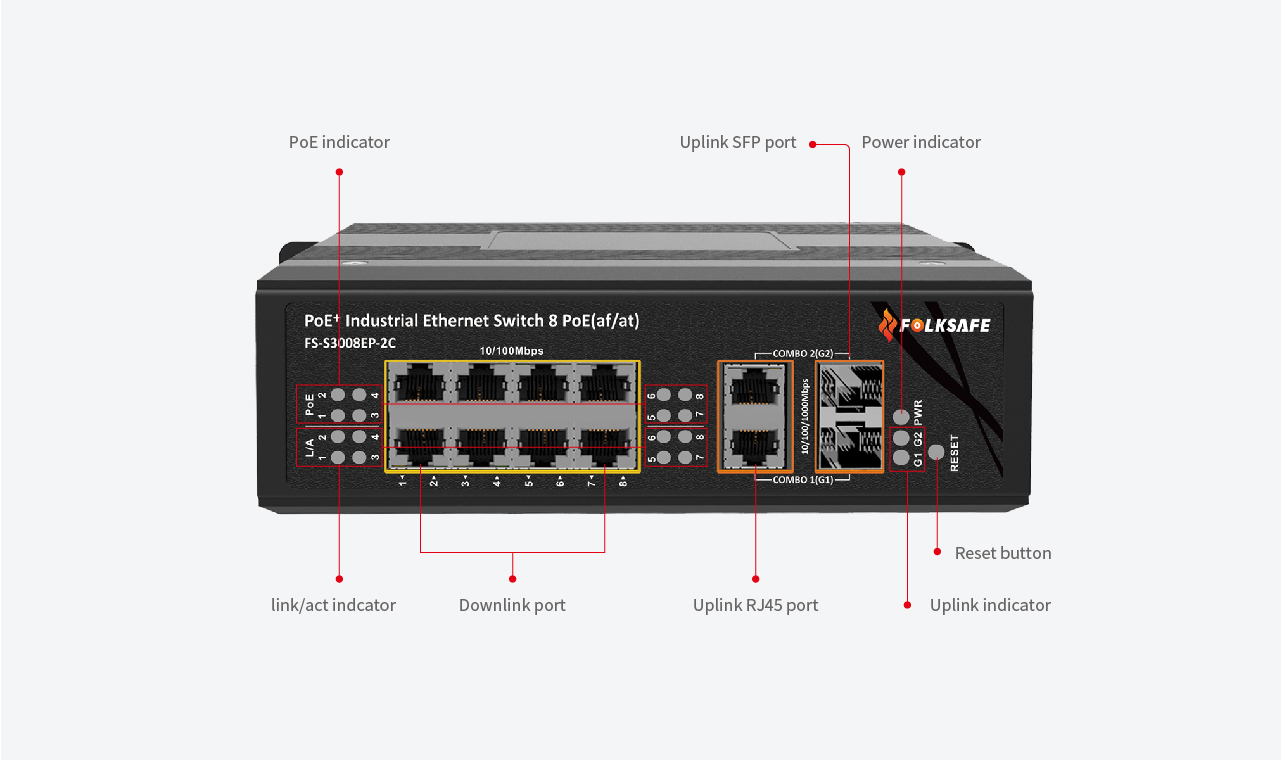

  • 2 Combo uplink port:10/100/1000Mbps RJ-45 or 1000Base-X optical fiber SFP port
  • 120-watts PoE budget
  • PoE data & power transmission distance up to 100meters
  • Excellent anti-thunder, anti-static and anti-interference ability
  • Surge Protection: 6KV
  • Restart function helps master IC reset wholly
  • External 53VDC/2.5A power adapter included
  • Easy and convenient to use, plug & play, no need to configure

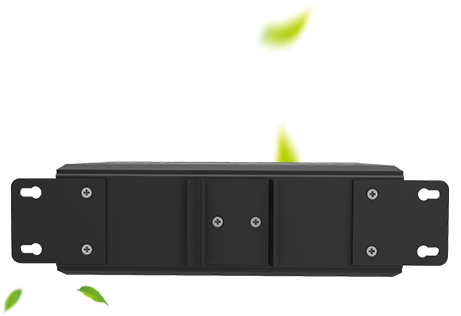

  • Galvanized housing for stable and durable working life
  • Working temperature -40~75℃
Support Auto MDI/MDIX


It supports standard Auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.




Easy and convenient to use, plug & play, no need to configure.


Save your cost and time


With data and power over Ethernet formed one unit, the FS-S3008EP-2C reduces cabling requirements and eliminates the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. A wire that carries both data and power can lower the installation costs, simplify the installation effort and eliminate the need for electricians or extension cords.


Office Network

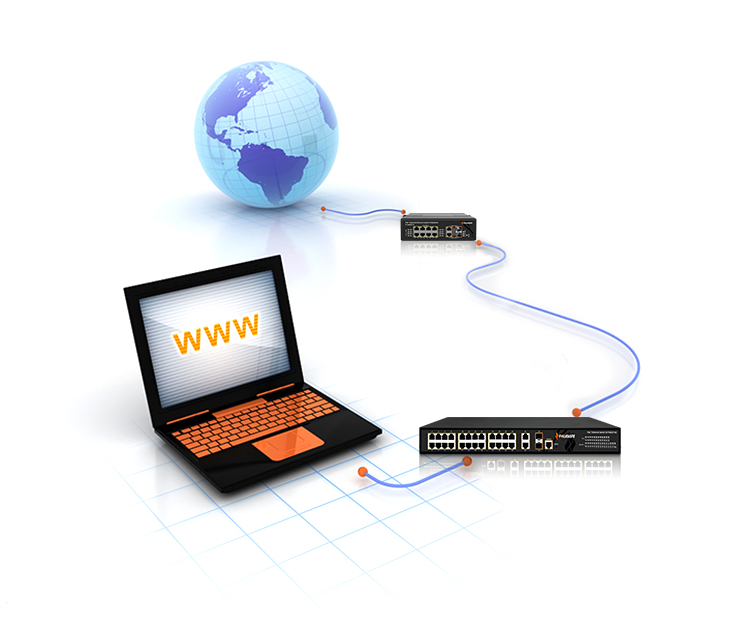

Cascade connection to better control
your surveillance system



It provides both 802.3af/at PoE functions along with 8 x 10/100Base-TX ports featuring 15.4-watt 802.3af/30-watt 802.3at PoE in RJ-45 interfaces and 2 Combo uplink ports:10/100/1000Mbps RJ-45 or 1000 Base-X optical fiber SFP port to keep a cascade connection with another switch or NVR as a kit for the administrators to centrally and efficiently manage the surveillance system in the local LAN and the remote site via Internet.


More features, more choices


Easy and convenient to use, plug & play, no need to configure.
