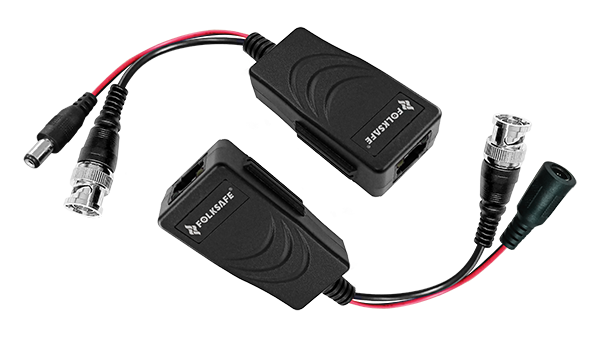

Model: FS-HD4301VPC
Single Channel HD Video & Power Balun (Convert 36VDC to regulated 12VDC)
-
Real-time transmission over UTP cat5e/6
-
No power required
-
Compatible with all HD-TVI/CVI/AHD/CVBS analog cameras
-
Please refer to “Transmission Distance Chart” Part to find out
-
distance of 720P/960P/1080P/3MP/4MP/5MP/4K cameras
-
Power distance is up to 305m(1000ft) over 3 pairs of UTP cat 5e/6
-
Male BNC connector with extended mini-coax pigtail
-
RJ-45 Jack for UTP cable
-
Built-in solid state TVS (Transient Voltage Suppressor) for surge protection
-
Wave Filter Design, Anti-Static Design
-
Lightning protection design Grade: Ⅲ
-
60 dB crosstalk and noise immunity
-
Exceptional interference rejection
-
ABS engineering plastic housing
