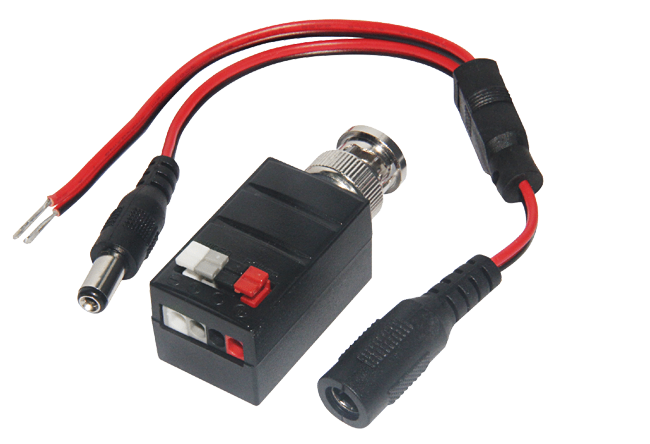

FS-HDA4501T

HD Active Video Balun

Overview | Parameters | Technical Specifications | Applications

Model: FS-HDA4501T

Single Channel Active Video Transmitter

Real-time transmission over UTP cat5e/6
Compatible with HD-TVI, CVI, AHD & CVBS analog cameras
Male BNC connector
Push-pin terminal connection
2-pins for UTP cat 5e/6 (Video: white: - gray: +)
2-pins for power cable (Power: black: - red: +)
Power Supply: 12VDC input < 10mA
Built-in solid state TVS (Transient Voltage Suppressor) for surge protection
Wave Filter Design, Anti-Static Design
Lightning protection design Grade: III
60dB crosstalk and noise immunity
Exceptional interference rejection
ABS engineering plastic housing
