Solar PoE Switch
Overview | Parameters | Technical Specifications | Applications

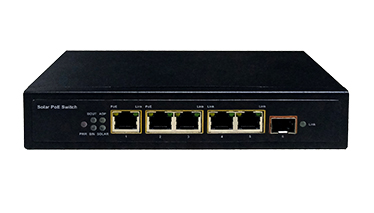

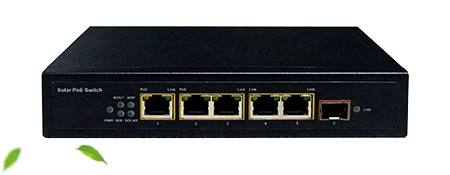

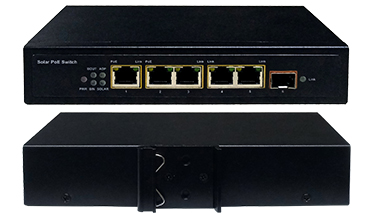

Model: FS-S1005GP-SG

5GE+1SFP Full Gigabit Solar PoE Switch

  • Comply with IEEE802.3, IEEE802.3u, IEEE802.3af/at standards
  • Support IEEE802.3x full-duplex flow control; support Auto MDI/MDIX
  • Provides 5 10/100/1000Mbps ports and 1 SFP Fiber port
  • 1 Hi-PoE port, provides max 60W power to powered devices
  • 2 PoE+ ports, provide max 30W power to powered devices
  • 2 non-standard DC 24V PoE ports, provide max 24W power to powered devices
  • Internal integrated battery charge and discharge controller, battery can be charged and discharged from Solar Panel or DC INPUT
  • Excellent anti-thunder, anti-static and anti-interference ability
  • Surge Protection: 4KV
  • Easy and convenient to use, plug & play, no need to configure
  • Galvanized housing for stable and durable working life
Support Auto MDI/MDIX

It supports standard Auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.

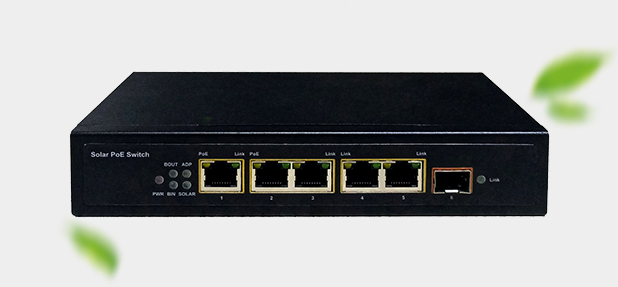

5GE+1SFP Full Gigabit Ports

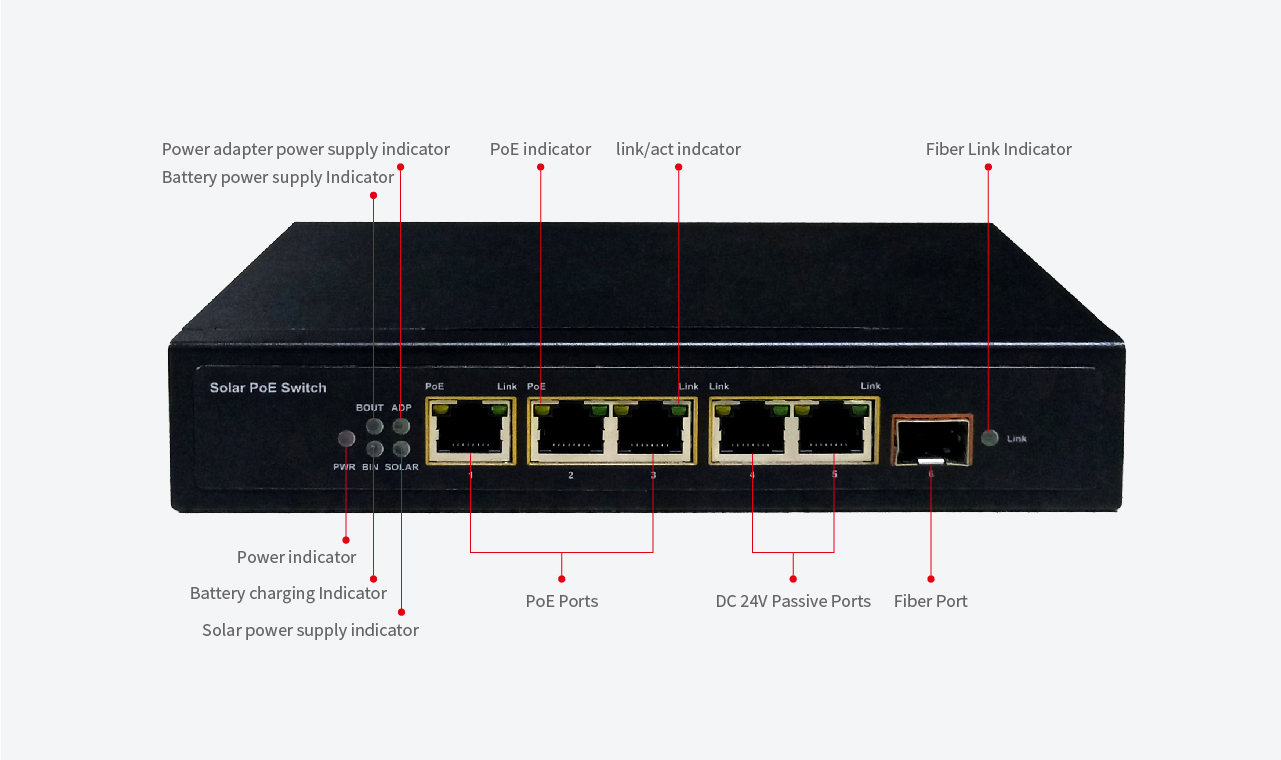

1 Hi-PoE port, provides max 60W power to powered devices; 2 PoE+ ports, provide max 30W power to powered devices; 2 non-standard DC 24V PoE ports, provide max 24W power to powered devices; 1 1000Base-X SFP port.


Internal integrated battery charge controller


It is designed with Internal integrated battery charge and discharge controller, battery can be charged and discharged from Solar Panel or DC INPUT.

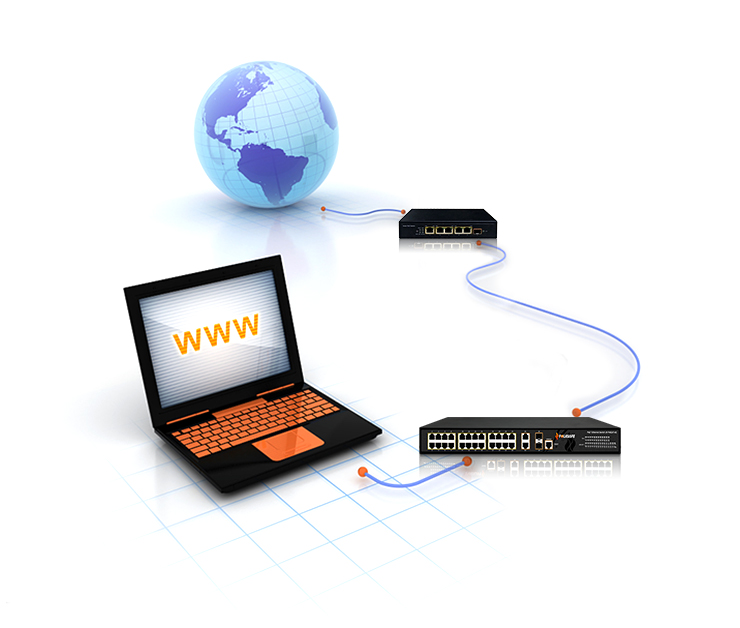

Office Network

Support Uninterrupted Power System



The solar panel has the highest power supply priority, when the output voltage of solar panel drops below 15V, then the power adapter will provide power to the device; If both the solar panel and power adapter power failed, the battery that can be charged and discharged from solar panel or power adapter will supply power to the device. Thus, keep the whole device power supply uninterruptible.




Save your cost and time


With data and power over Ethernet formed one unit, the FS-S1005GP-SG reduces cabling requirements and eliminates the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. A wire that carries both data and power can lower the installation costs, simplify the installation effort and eliminate the need for electricians or extension cords.
