16-Port 10/100/1000Mbps IEEE 802.3af/at Industrial Managed PoE Switch (End-Span PSE)

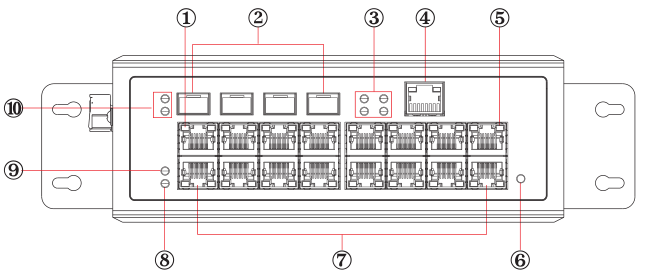

1 Power Indicator: Red Light on: with power Light off: no power
2 Uplink SFP Port: transferring data to remote devices
3 Fiber Uplink Indicator: Green Light on: link up off: link down blinks: data transferring
4 Console Port: Switch CLI Configuration Interface
5 Link/ Act Indicator: Green Light on: link up off: link down blinks: data transferring
6 Reset Button: Press the reset button to RESTART the device
7 PoE supply and data transferred port: Supplies the power to PD device and transfers the data
8 System LED: Flashes when deceive is running
9 Alarm LED: Light on when one of the input power or PoE downlink ports is off
10 Power Indicator: Red Light on: with power Light off: no power

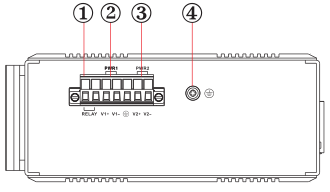

1 Relay Alarm connection
2 Power Input: DC 48~56V
3 Power Input: DC 48~56V
4 Ground Connection
1 Rack-mounting ears: Used to wall mount installation
2 DIN-rail: Used to DIN-rail installation
1. Cat5e, Cat6, or Cat7 cable
2. RJ-45 connectors
3. Crimping tool
4. Wire stripper or Knife
1) We recommend stripping at least half an inch of the cable to expose the inner wires.
2) Separate the wires within the cable after the network cable jacket has been removed so that they can be put into the RJ-45 connector.
3) The CAT5 twisted-pair cable consists of four twisted wires, each color coded; 8 wires must be correctly lined as the standards of EIA/TIA 568A or EIA/TIA 568B.
4) Cut thread residue and leave 1.5cm wire exposed outside the insulating layer and ensure 8 wires are straighten and neat.
5) Place the cable into the RJ-45 connector and then use the crimping tool to attach the connector.
6) Repeat above steps for the other end of the cable; the wire sequence of both ends of the cable is suggested to be identical.
7) Make sure to test the cables before installing them once both ends of the cable have been completed.
Note:
1. All RJ-45 Ports of this device support Auto MDI/MDIX, so the different wire sequence of both ends of the cable is allowed.
2. Up to two units can be cascaded.
Package Contents
1) FS-S5016GP-4SG: 1pc 2) 53VDC/3.8A Power adapter: 1pc
3) Screws: 10pcs 4) DIN rail: 1pc
5) Mounting-ears: 2pcs 6) Manual: 1pc

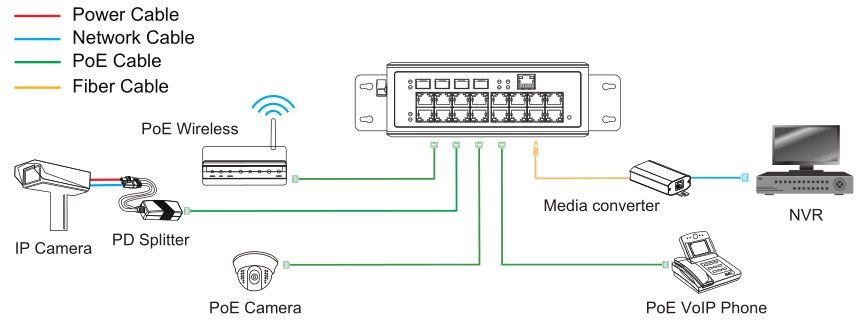

Step 1: Begin with all input/output devices turned off and power cables are removed.
Step 2: Connect RJ-45 port of PoE cameras with Downlink RJ-45 port of PoE switches over standard Cat 5e/6 cables.
Step 3: Connect Uplink port of PoE switches with RJ-45 port of NVR or computer or other devices over standard Cat 5e/6 cables.
Step 4: Connect 53VDC/3.8A power adaptor with PoE switches.
Step 5: Make sure above connection is properly finished, then turn on the power.
|
Model |
FS-S5016GP-4SG |
|
|
Product Name |
16-Port 10/100/1000Mbps IEEE 802.3af/at Industrial Managed PoE Switch (End-span PSE) |
|
|
Power Supply |
Power Supply Mode |
Power Adaptor |
|
Voltage Range |
DC48~56V |
|
|
Power Consumption |
The device <15W PoE power supply ≤200W |
|
|
Network Port Parameter |
Network Port |
1~16 Ethernet Port: 10/100/1000Mbps Extra 4-Port 1000Base-X UPLINK SFP ports |
|
Transmission Distance |
Downlink Port: 100m Uplink Port: The transmission distance of optical fiber port depends on the different SFP modules |
|
|
Transmission Medium |
Downlink Port: Cat5e/6 standard cable Uplink Port: optical fiber |
|
|
PoE Standards |
IEEE802.3af/at |
|
|
PoE Power Supply Mode |
End-span method |
|
|
PoE Power Supply Wattage |
Each port ≤30W Whole device≤200W |
|
|
Network Switch Specification |
Network Standards |
IEEE802.3, IEEE802.3ab, IEEE802.3u, IEEE802.3az, IEEE802.3ad |
|
Swap Mode |
Store-and- forward |
|
|
Data-Caching Mechanism |
12M |
|
|
MAC Address List |
16K |
|
|
Backplane Bandwidth |
40Gbps |
|
|
Forwarding Capacity |
29.76Mpps |
|
|
Indicator/Button |
Power Indicator |
Red LED on: power on |
|
PoE System Indicator |
1 indicator light(green), Flashing frequency: 1s, Steady on indicates abnormal operation |
|
|
Alarm Indicator |
Red light on: when one of the input power or PoE downlink ports is off |
|
|
Uplink SFP Port Indicator |
Green LED on: link up, off: link down, blinks: data transfer |
|
|
PoE Indicator |
16 PoE indicator light (yellow), on: indicating PoE powers normally, off: indicating no power |
|
|
PoE Network Port Indicator |
1-16 port (green light), keeps on when well connected; glinting while data transfer |
|
|
Reset Button |
Whole machine will restart while press the button |
|
|
Protection Level |
Surge Protection |
6KV (common mode),10/700us IEC61000-4-5 2KV (differential mode),10/700us IEC610000-4-5 |
|
Electrostatic Protection |
Contact Discharge: ±8KV Air Discharge: ±15KV Standard: IEC61000-4-2 |
|
|
Reliability |
Mean time between failures (MTBF) |
＞100000h |
|
Mechanical |
Dimensions (L*W*H) |
184mmx143mmx100mm |
|
Housing |
Galvanized |
|
|
Body Color |
Black |
|
|
Net Weight |
750g |
|
|
Environmental |
Operating Temperature |
-40℃~75℃ |
|
Storage Temperature |
-40℃~85℃ |
|
|
Relative Humidity |
0~95% (non-condensing) |
|
• Security Monitoring System
• Multimedia Network Teaching System
• Medical Monitoring Display System
• Industrial Automation Control System
• Banking, securities, financial information display system
• Remote Network Server Monitoring
• Department Store Security
• Casino Security
• Hospitals, Airports and banks
• School Campuses
