Industrial Managed PoE switch
Overview | Parameters | Technical Specifications | Applications

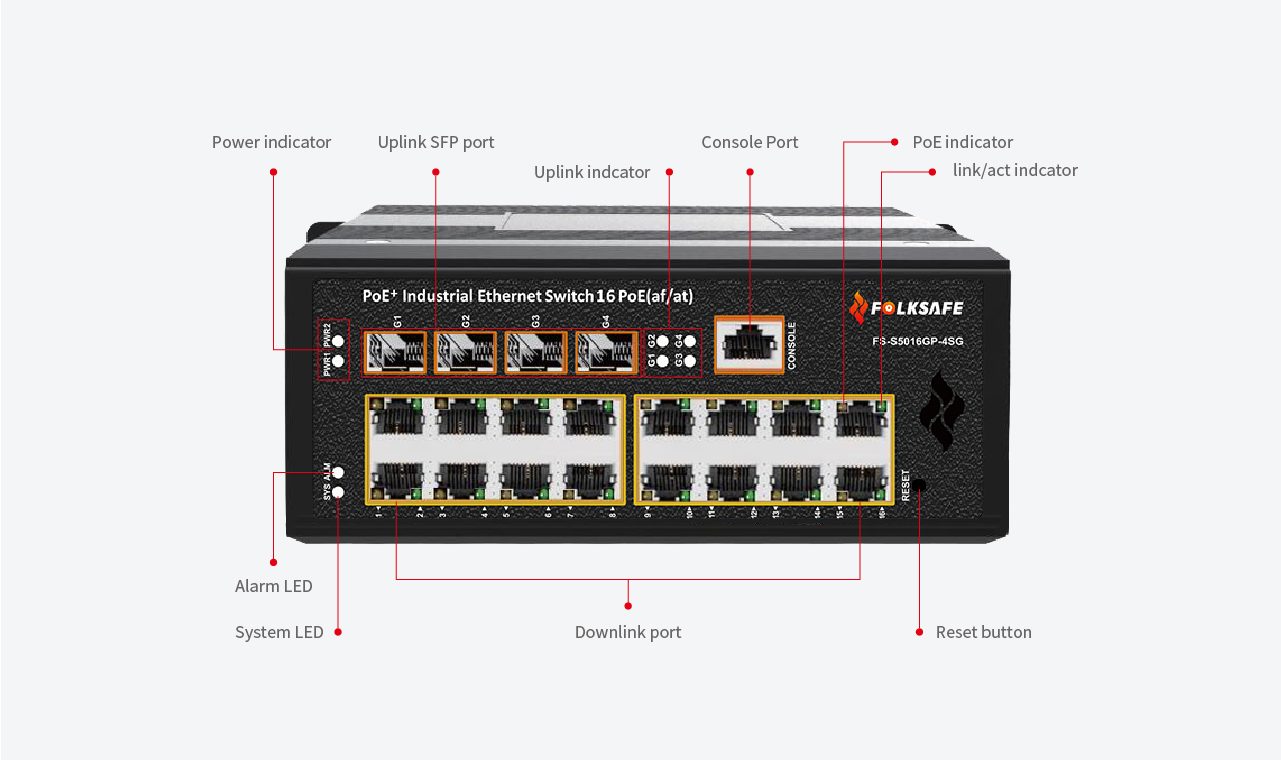

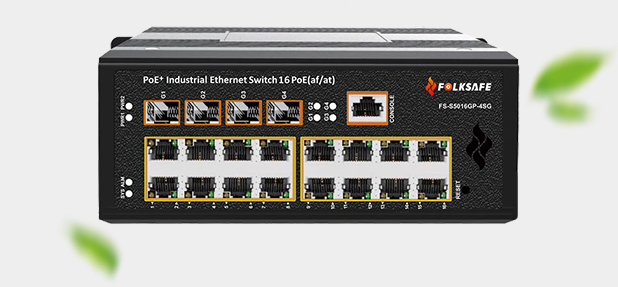

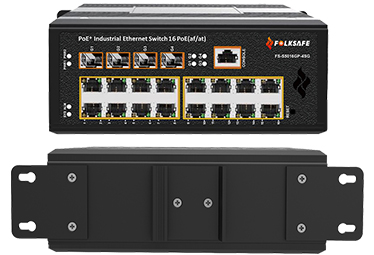

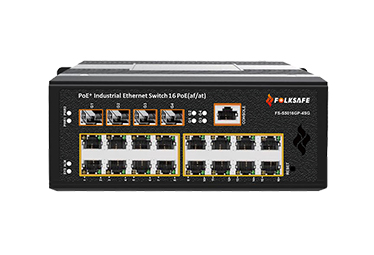

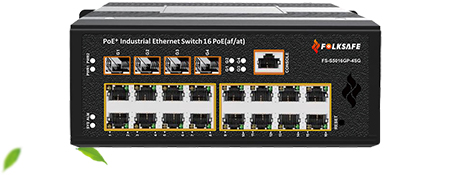

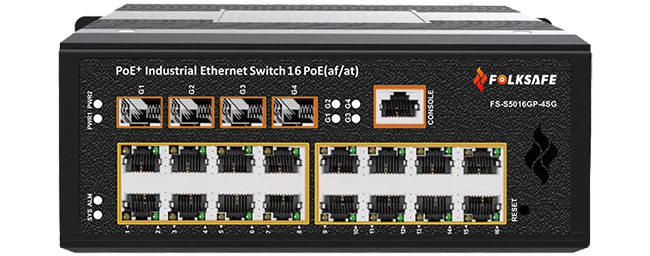

Model: FS-S5016GP-4SG

16-Port 10/100/1000Mbps IEEE 802.3af/at Industrial Managed PoE Switch (End-Span PSE)

  • Comply with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3az, IEEE802.3af/at standards
  • Support IEEE802.3x full-duplex flow control; support Auto MDI/MDIX
  • Support WEB, TELNET & SNMP management
  • Support L2 switching function, including 802.1QVLAN, port mirroring IGMP Snooping function, PoE+ management
  • Support STP (802.1D) and RSTP (802.1w)
  • Support ERPS, recovery time less than 20ms
  • 16-Port support 48V-56VDC power to PoE powered devices
  • Provide 15.4W or 30W power to powered devices
  • Extra 4 1000Base-X UPLINK SFP ports
  • PoE data & power transmission distance up to 100 meters
  • Port based VLAN for Enhancing Security
  • Excellent anti-thunder, anti-static and anti-interference abilities
  • Surge Protection: 6KV
  • Restart function helps master IC reset wholly
  • Easy and convenient to use, plug & play, no need to configure

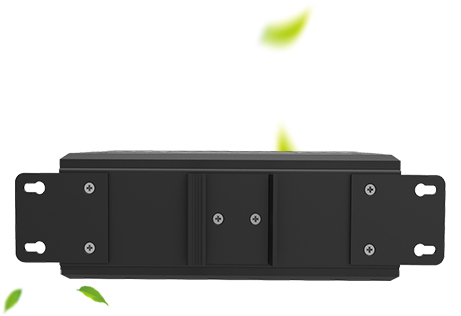

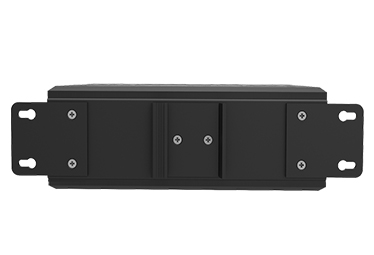

  • Galvanized housing for stable and durable working life
Support Auto MDI/MDIX


It supports standard Auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.




1+1 power supply redundant design, more reliable and stable.


Save your cost and time


With data and power over Ethernet formed one unit, the FS-S5016GP-4SG reduces cabling requirements and eliminates the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. A wire that carries both data and power can lower the installation costs, simplify the installation effort and eliminate the need for electricians or extension cords.


Office Network

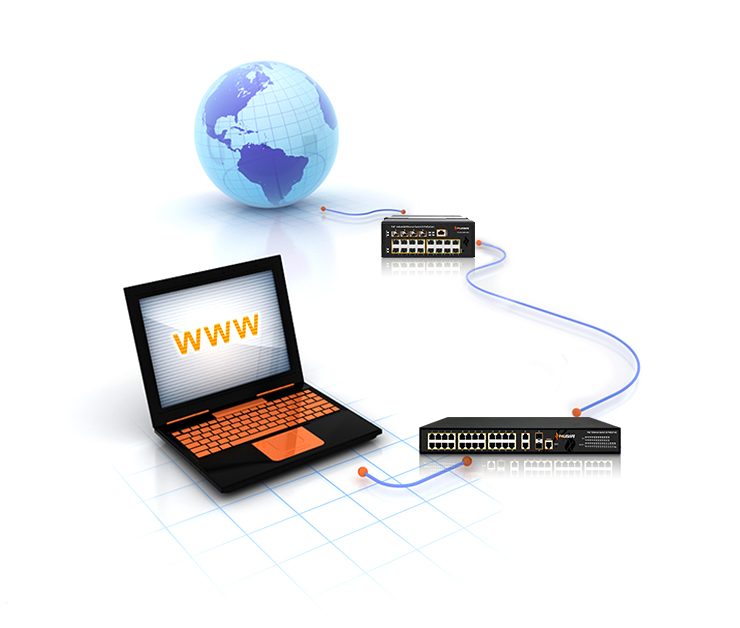

Cascade connection to better control
your surveillance system



It provides both 802.3af/at PoE functions along with 16 x 10/ 100/ 1000Base-T ports featuring 15.4-watts 802.3af/30-watts 802.3at PoE in RJ-45 interfaces and extra 4 1000Base-X UPLINK SFP ports to keep a cascade connection with another switch or NVR as a kit for the administrators to centrally and efficiently manage the surveillance system in the local LAN and the remote site via Internet.

More features, more choices


Easy and convenient to use, plug & play, no need to configure.
